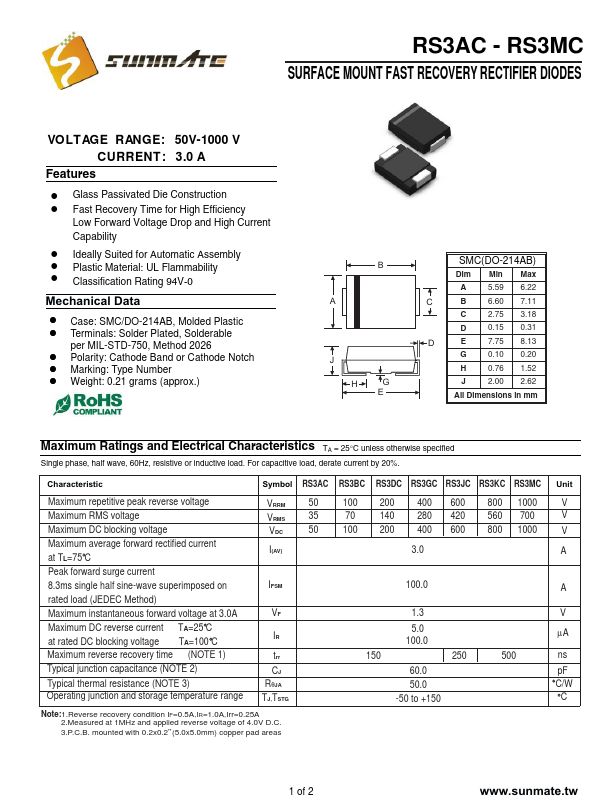

RS3GC, RS3AC - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES

RS3GC Description

RS3AC - RS3MC SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES VOLTAGE RANGE: 50V-1000 V CURRENT: 3.0 A .

RS3GC Features

* ! Glass Passivated Die Construction ! Fast Recovery Time for High Efficiency Low Forward Voltage Drop and High Current Capability ! Ideally Suited for Automatic Assembly ! Plastic Material: UL Flammability ! Classification Rating 94V-0 Mechanical Data ! Case: SMC/DO-214AB, Molded Plastic ! Terminals

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RS3GC, RS3AC. Please refer to the document for exact specifications by model.

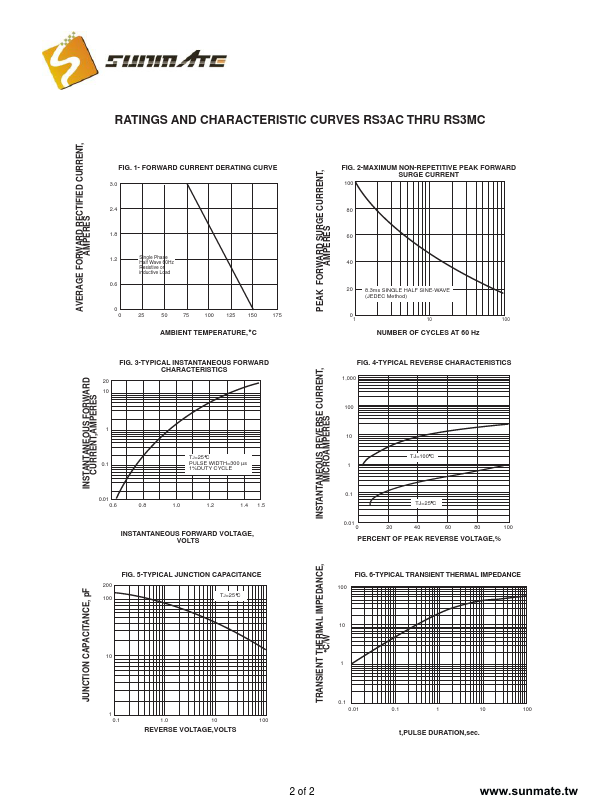

datasheet Preview Page 2

Datasheet Details

Part number
RS3GC, RS3AC
Manufacturer
Sunmate
File Size
111.58 KB
Datasheet
RS3AC-Sunmate.pdf
Description
SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
Note
This datasheet PDF includes multiple part numbers: RS3GC, RS3AC.
Please refer to the document for exact specifications by model.
