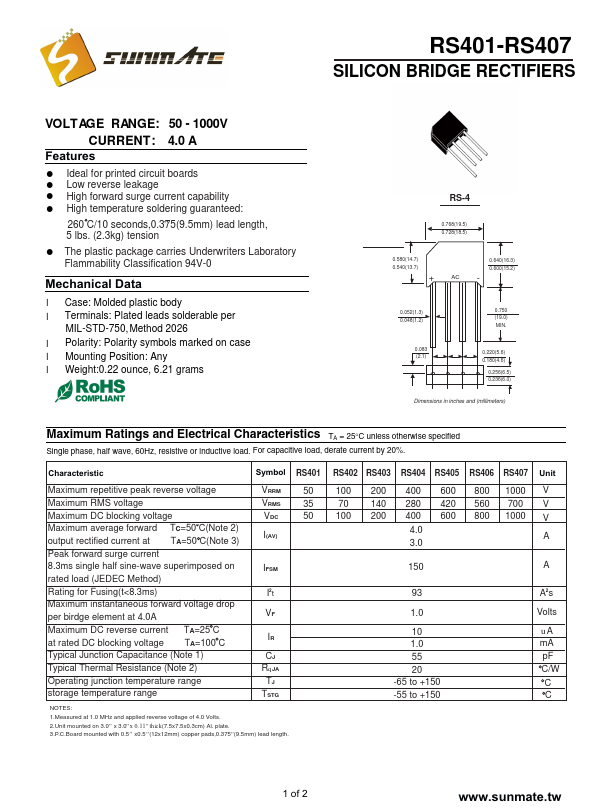

RS401 - SILICON BRIDGE RECTIFIERS

Sunmate

Datasheet Details

! Ideal for printed circuit boards ! Low reverse leakage ! High forward surge current capability ! High temperature soldering guaranteed: 260 C/10 seconds,0.3”75(9.5mm) lead length, 5 lbs. (2.3kg) tension ! The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 Mechanical Data l Case: Molded plastic body l Terminals: Plated leads solderable per MIL-STD-750, Method 2026 l Polarity: Polarity symbols marked on case l Mounting Position: Any l Weight:0.22 ounce, 6.21 gr.
