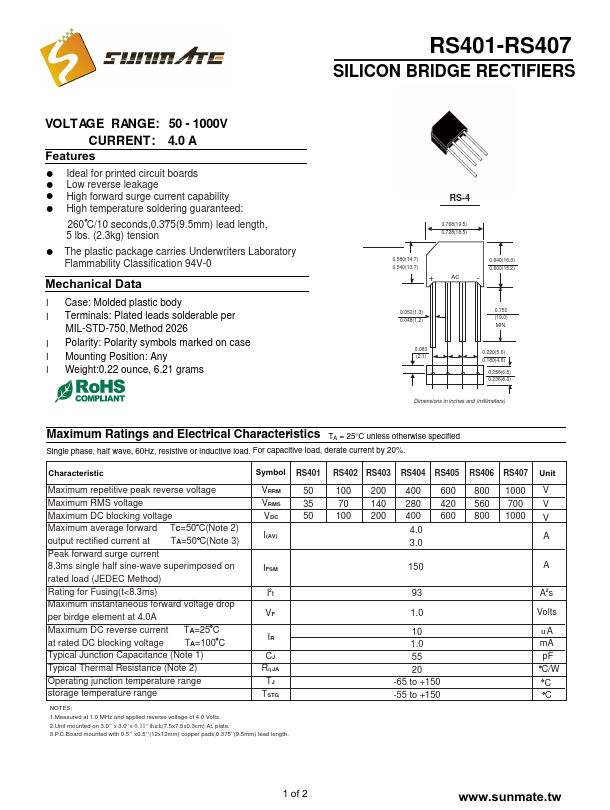

RS406
Features
! Ideal for printed circuit boards ! Low reverse leakage ! High forward surge current capability ! High temperature soldering guaranteed:
260 C/10 seconds,0.3”75(9.5mm) lead length, 5 lbs. (2.3kg) tension
! The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
Mechanical Data l Case: Molded plastic body l Terminals: Plated leads solderable per
MIL-STD-750, Method 2026 l Polarity: Polarity symbols marked on case l Mounting Position: Any l Weight:0.22 ounce, 6.21 grams
RS-4
0.768(19.5) 0.728(18.5)
0.580(14.7) 0.540(13.7)
0.640(16.3) 0.600(15.2)
+ AC
- 0.052(1.3) 0.048(1.2)
0.750 (19.0) MIN.
0.083 (2.1)
0.220(5.6) 0.180(4.6)
0.256(6.5) 0.236(6.0)
Dimensions in inches and (millimeters)
Maximum Ratings and Electrical Characteristics TA = 25°C unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
Characteristic
Symbol RS401
Maximum repetitive peak reverse...
