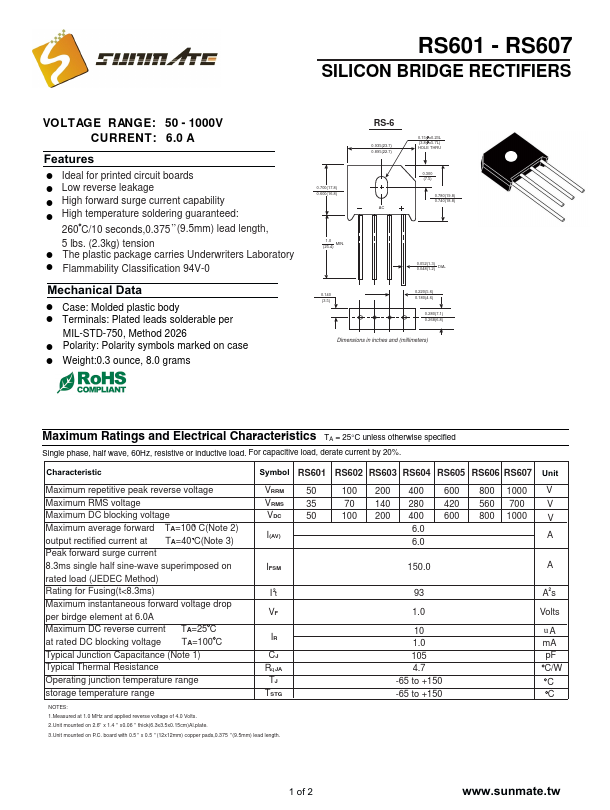

RS607
Features
! Ideal for printed circuit boards ! Low reverse leakage ! High forward surge current capability ! High temperature soldering guaranteed:
260 C/10 seconds,0.375 ”(9.5mm) lead length, 5 lbs. (2.3kg) tension ! The plastic package carries Underwriters Laboratory ! Flammability Classification 94V-0
Mechanical Data
! Case: Molded plastic body ! Terminals: Plated leads solderable per
MIL-STD-750, Method 2026 ! Polarity: Polarity symbols marked on case ! Weight:0.3 ounce, 8.0 grams
0.700(17.8) 0.600(16.8)
RS-6
0.935(23.7) 0.895(22.7)
0.15 x0.23L (3.8 x5.7L) HOLE THRU
0.300 (7.5)
0.780(19.8) 0.740(18.8)
1.0 (25.4) MIN.
0.052(1.3) DIA. 0.048(1.2)
0.140 (3.5)
0.220(5.6) 0.180(4.6)
0.280(7.1) 0.268(6.8)
Dimensions in inches and (millimeters)
Maximum Ratings and Electrical Characteristics TA = 25°C unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
Characteristic
Symbol RS601 RS602 RS603 RS604...
