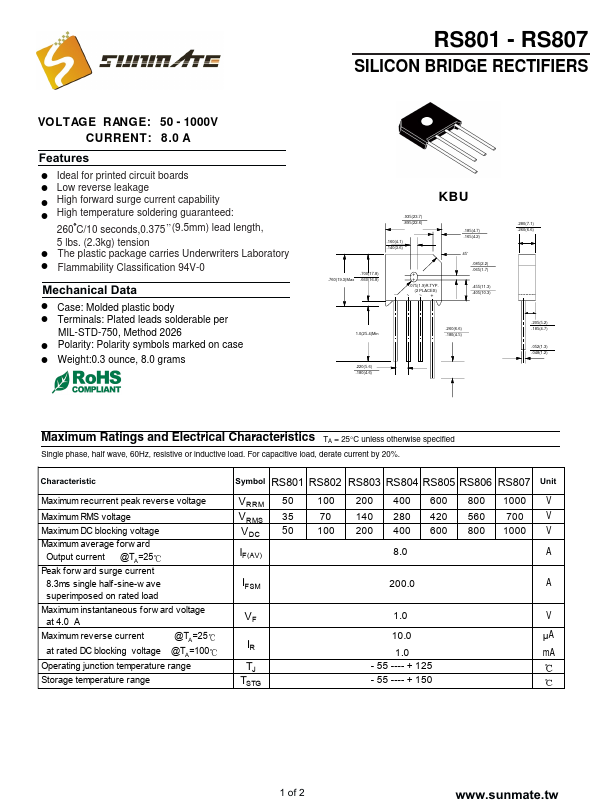

RS805
Features
! Ideal for printed circuit boards ! Low reverse leakage ! High forward surge current capability ! High temperature soldering guaranteed:
260 C/10 seconds,0.375 ”(9.5mm) lead length, 5 lbs. (2.3kg) tension ! The plastic package carries Underwriters Laboratory ! Flammability Classification 94V-0
Mechanical Data
! Case: Molded plastic body ! Terminals: Plated leads solderable per
MIL-STD-750, Method 2026 ! Polarity: Polarity symbols marked on case ! Weight:0.3 ounce, 8.0 grams
.935(23.7) .895(22.6)
.160(4.1) .140(3.6)
.700(17.8) .760(19.3)Max .660(16.8)
+ +
.075(1.9)R.TYP.
_
(2 PLACES) ~ ~+
.185(4.7) .165(4.2)
450 .085(2.2) .065(1.7)
.455(11.3) .405(10.3)
1.0(25.4)Min
.220(5.6) .180(4.6)
.260(6.6) .180(4.5)
.280(7.1) .260(6.6)
.205(5.2) .185(4.7) .052(1.3) .048(1.2)
Maximum Ratings and Electrical Characteristics TA = 25°C unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
Characteris...
