S07A - SURFACE MOUNT RECTIFIER DIODES

S07A Description

S07A - S07M SURFACE MOUNT RECTIFIER DIODES VOLTAGE RANGE: 50 - 1000V CURRENT: 0.7 A .

S07A Applications

* ! Low leakage current ! Metallurgically bonded construction ! High temperature soldering: ! 250 /10 seconds at terminals Mechanical Data ! Case: JEDEC SOD-123FL molded plastic body over passivated chip ! Terminals : Plated axial leads, solderable per MIL-STD-750, Method 2026 ! Polarity : Color band

📥 Download Datasheet

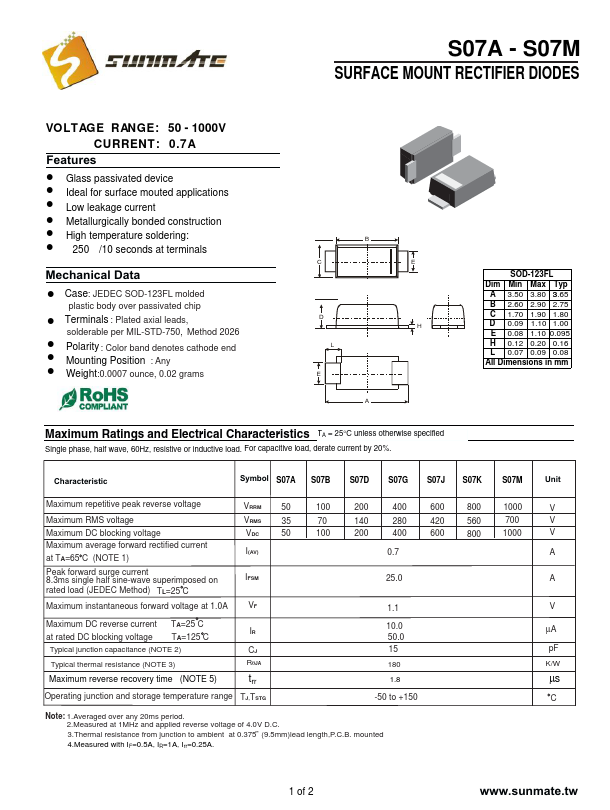

Preview of S07A PDF

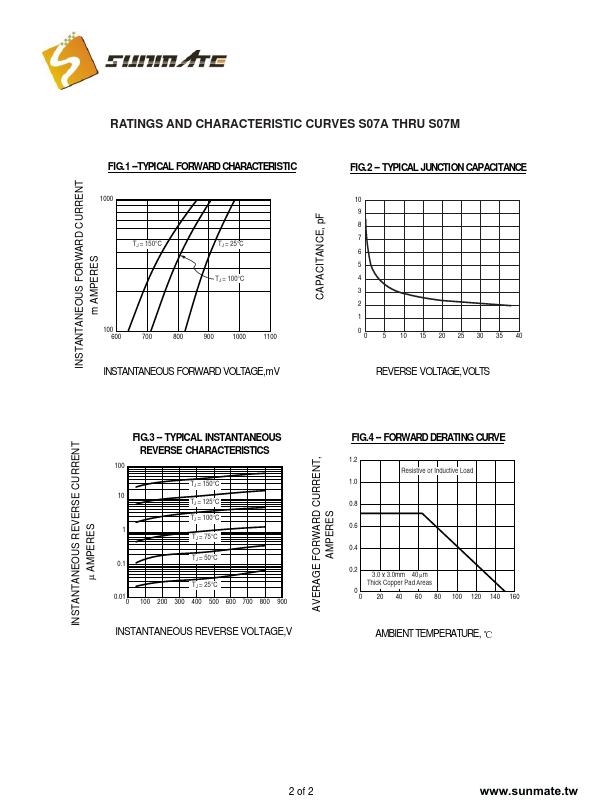

datasheet Preview Page 2

Datasheet Details

Part number
S07A
Manufacturer
Sunmate
File Size
147.73 KB
Datasheet
S07A-Sunmate.pdf
Description
SURFACE MOUNT RECTIFIER DIODES
