S3ABF - SURFACE MOUNT RECTIFIER DIODES

Product Overview

Sunmate

📥 Download Datasheet

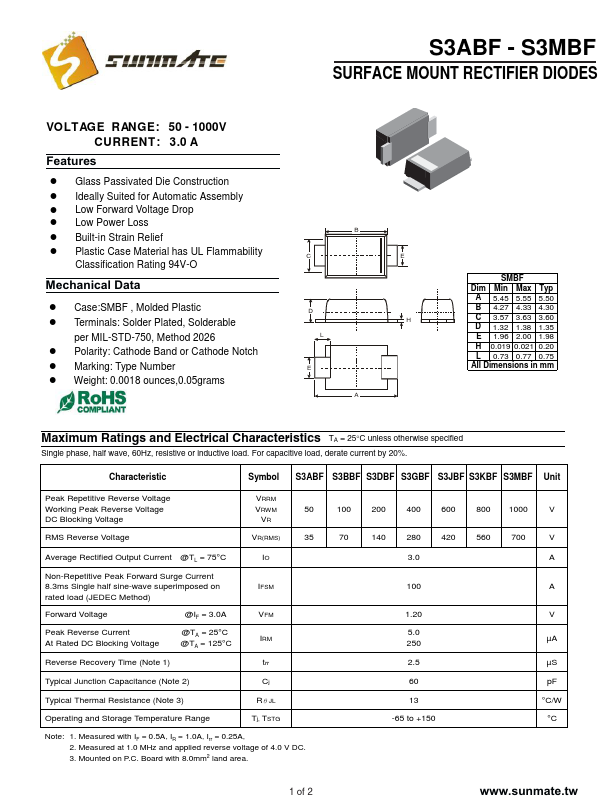

S3ABF SURFACE MOUNT RECTIFIER DIODES by Sunmate - Datasheet Preview — Datasheet preview – S3ABF

Datasheet Details

Part number	S3ABF
Manufacturer	Sunmate
File Size	105.15 KB
Description	SURFACE MOUNT RECTIFIER DIODES
Datasheet	S3ABF Datasheet

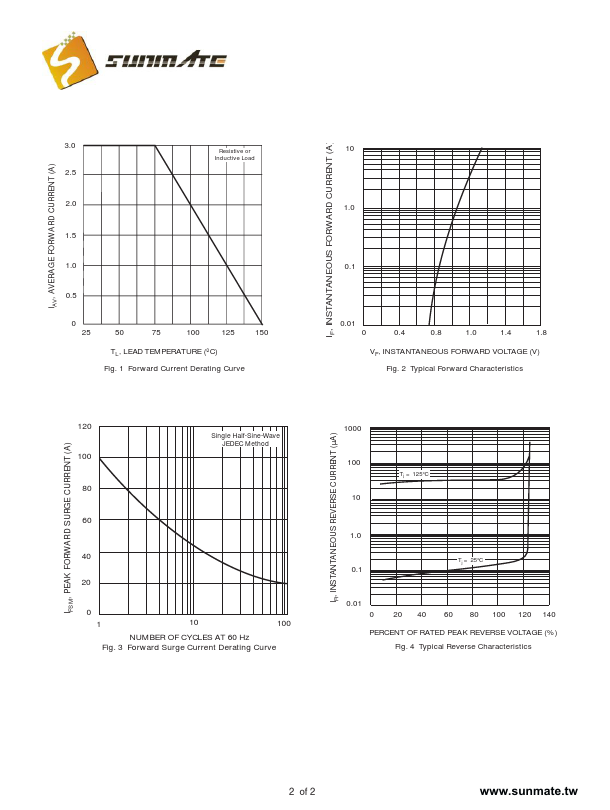

Additional preview pages of the S3ABF datasheet.

Product details

Features

! Glass Passivated Die Construction ! Ideally Suited for Automatic Assembly ! Low Forward Voltage Drop ! Low Power Loss B ! Built-in Strain Relief ! Plastic Case Material has UL Flammability C E Classification Rating 94V-O Mechanical Data SMBF Dim Min Max Typ A 5.45 5.55 5.50 ! Case:SMBF , Molded Plastic D B 4.27 4.
