S3GBF - SURFACE MOUNT RECTIFIER DIODES

Sunmate

📥 Download Datasheet

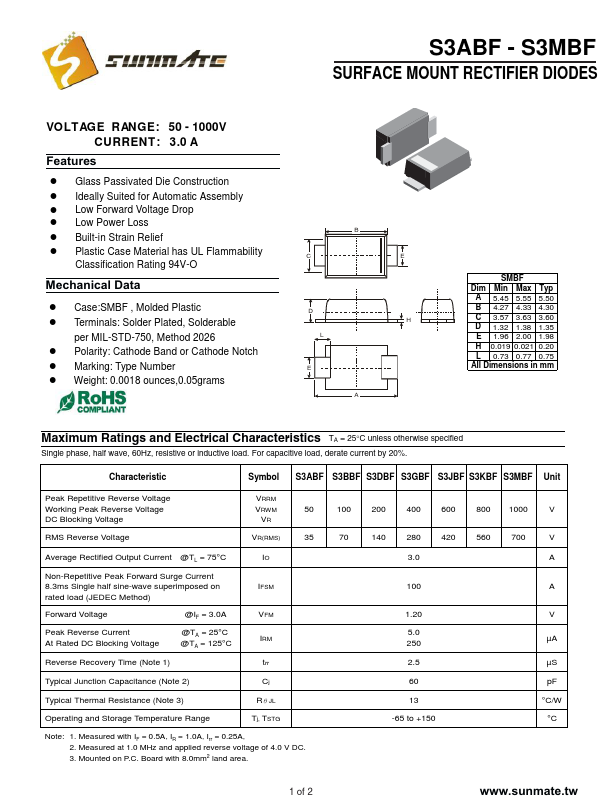

S3GBF Datasheet Preview — Preview of S3GBF PDF

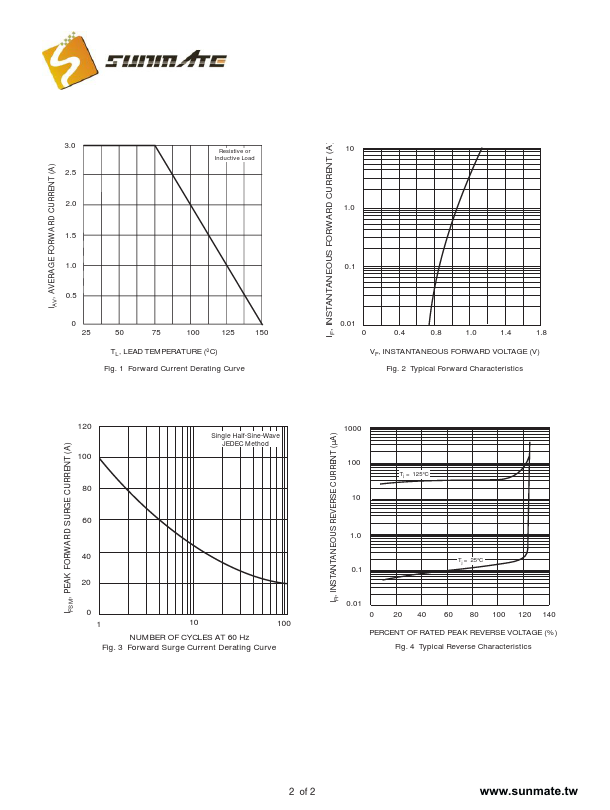

datasheet Preview Page 2

Datasheet Details

Part number	S3GBF
Manufacturer	Sunmate
File Size	91.52 KB
Description	SURFACE MOUNT RECTIFIER DIODES
Datasheet	S3GBF-Sunmate.pdf

S3GBF Product details

Features

! Glass Passivated Die Construction ! Ideally Suited for Automatic Assembly ! Low Forward Voltage Drop ! Low Power Loss B ! Built-in Strain Relief ! Plastic Case Material has UL Flammability C E Classification Rating 94V-O Mechanical Data SMBF Dim Min Max Typ A 5.45 5.55 5.50 ! Case:SMBF , Molded Plastic D B 4.27 4.
