S5ABF Description

S5ABF - S5MBF SURFACE MOUNT RECTIFIER DIODES VOLTAGE RANGE: 50 - 1000V CURRENT: 5.0 A .

S5ABF Features

* ! Glass Passivated Die Construction ! Ideally Suited for Automatic Assembly ! Low Forward Voltage Drop ! Low Power Loss ! Built-in Strain Relief B ! Plastic Case Material has UL Flammability Classification Rating 94V-O C E

📥 Download Datasheet

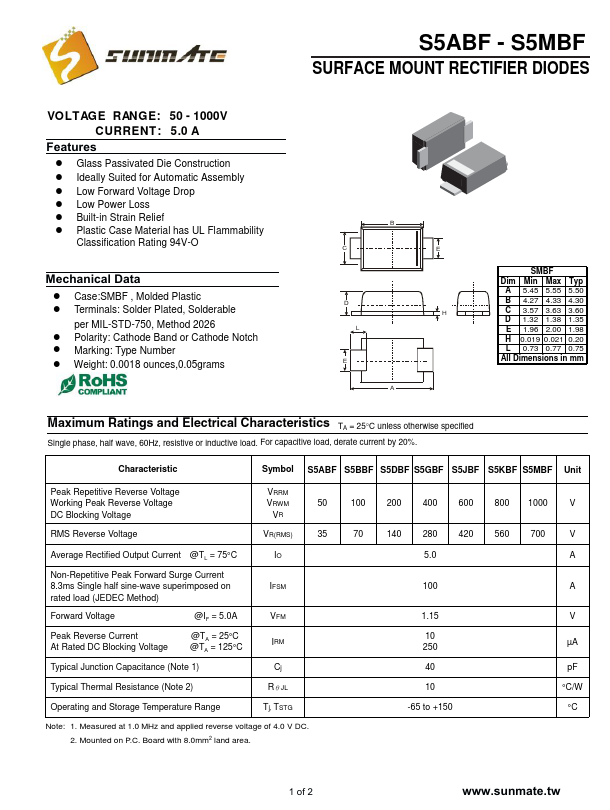

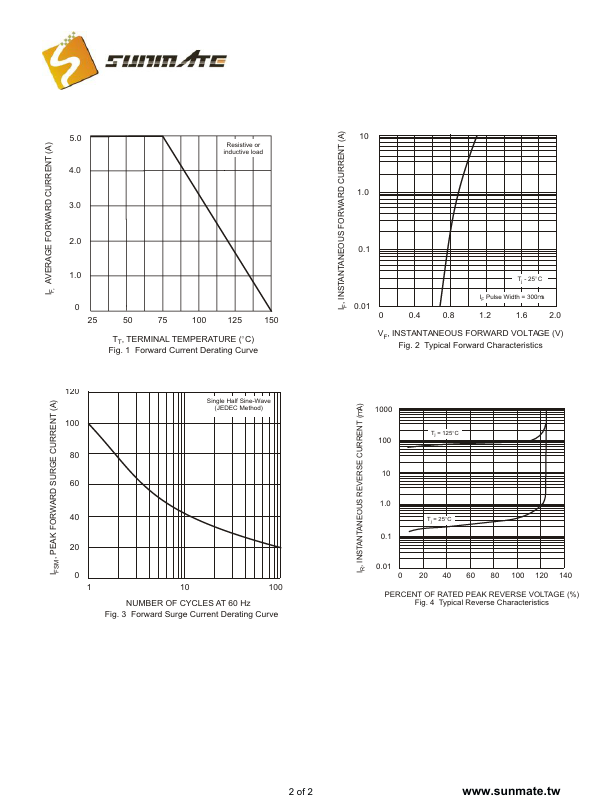

S5ABF Datasheet Preview — Preview of S5ABF PDF

Datasheet Details

Part number: S5ABF
Manufacturer: Sunmate
File Size: 114.71 KB
Datasheet: S5ABF-Sunmate.pdf
Description: SURFACE MOUNT RECTIFIER DIODES
