S5G

The S5G is SURFACE MOUNT RECTIFIER DIODES designed by Sunmate.

Product Overview

Sunmate

📥 Download Datasheet

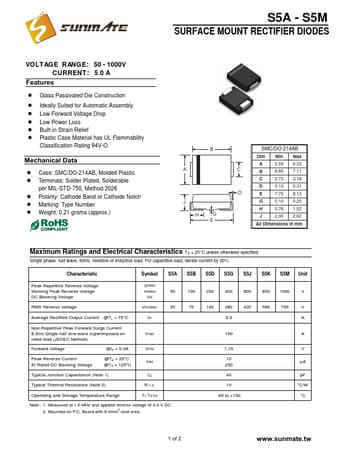

S5G SURFACE MOUNT RECTIFIER DIODES by Sunmate - Datasheet Preview — Datasheet preview – S5G

Datasheet Details

Part number	S5G
Manufacturer	Sunmate
File Size	294.67 KB
Description	SURFACE MOUNT RECTIFIER DIODES
Datasheet	S5G-Sunmate.pdf
Additional preview pages of the S5G datasheet.

Product details

Features

! Glass Passivated Die Construction ! Ideally Suited for Automatic Assembly ! Low Forward Voltage Drop ! Low Power Loss ! Built-in Strain Relief ! Plastic Case Material has UL Flammability C la s s ification Ra tin g 94 V -O B SMC/DO-214AB Mechanical Data ! Case: SMC/DO-214AB, Molded Plastic ! Terminals: Solder Plated, Solderable per MIL-STD-7.
