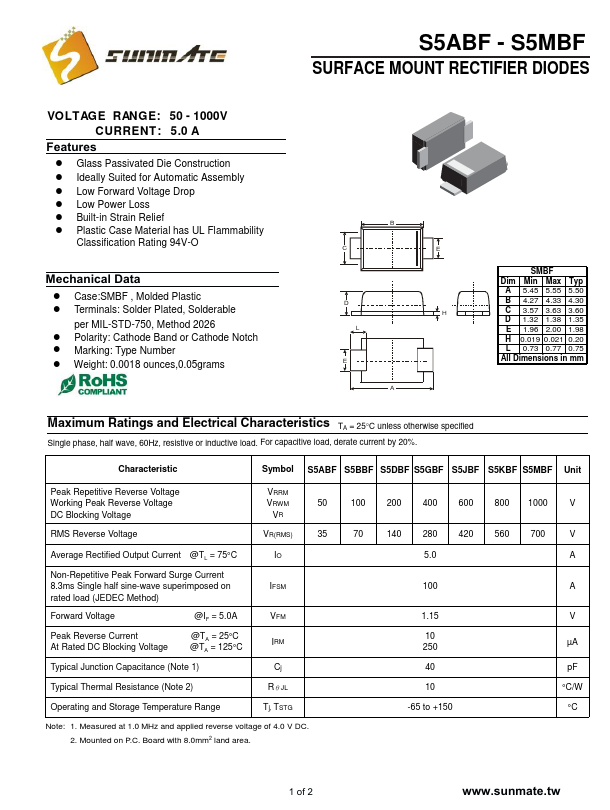

S5JBF - SURFACE MOUNT RECTIFIER DIODES

Sunmate

Datasheet Details

Part number	S5JBF
Manufacturer	Sunmate
File Size	102.21 KB
Description	SURFACE MOUNT RECTIFIER DIODES
Datasheet	S5JBF-Sunmate.pdf

! Glass Passivated Die Construction ! Ideally Suited for Automatic Assembly ! Low Forward Voltage Drop ! Low Power Loss ! Built-in Strain Relief B ! Plastic Case Material has UL Flammability Classification Rating 94V-O C E Mechanical Data ! Case:SMBF , Molded Plastic ! Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026 ! Polarity: Cathode Band or Cathode Notch ! Marking: Type Number ! W.
