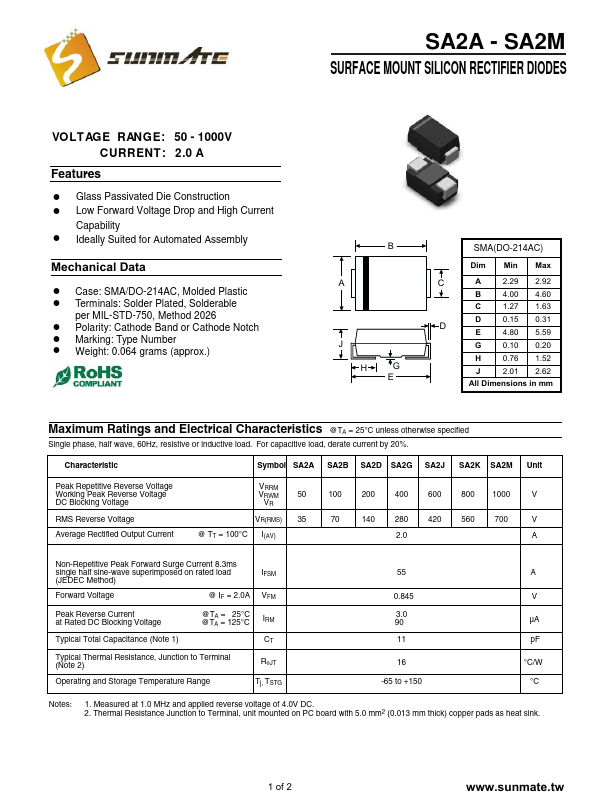

! Glass Passivated Die Construction ! Low Forward Voltage Drop and High Current
Capability ! Ideally Suited for Automated Assembly
Mechanical Data
! Case: SMA/DO-214AC, Molded Plastic ! Terminals: Solder Plated, Solderable
per MIL-STD-750, Method 2026 ! Polarity: Cathode Band or Cathode Notch ! Marking: Type Number ! Weight: 0.064 grams (approx. )
B A
J
H
G
E
SMA(DO-214AC)
Dim Min Max
C
A
2.29 2.92
B
4.00 4.60
C
1.27 1.63
D
D
0.15 0.31
E
4.80 5.59
G
0.10 0.20
H
0.76 1.52
J.
