SD101B, SD101A - SCHOTTKY BARRIER DIODES

Sunmate

📥 Download Datasheet

SD101B Datasheet Preview — This datasheet PDF includes multiple part numbers: SD101B, SD101A. Please refer to the document for exact specifications by model.

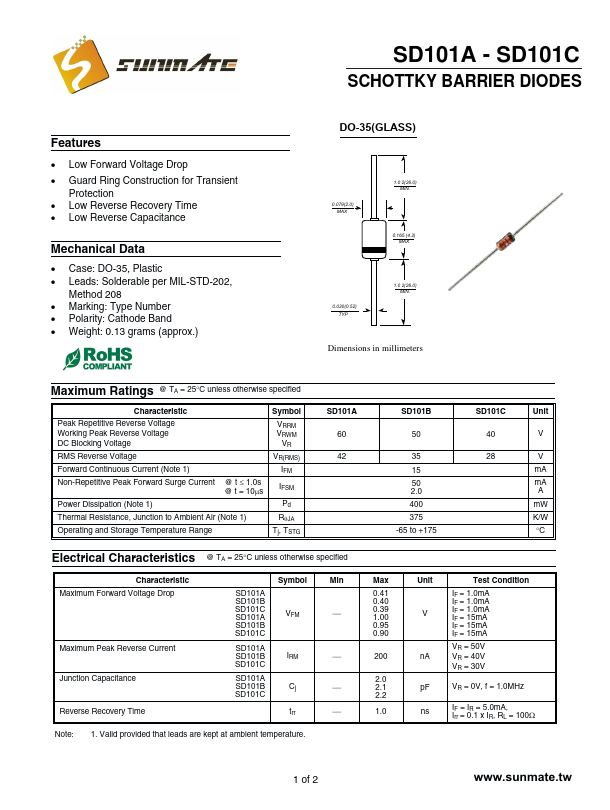

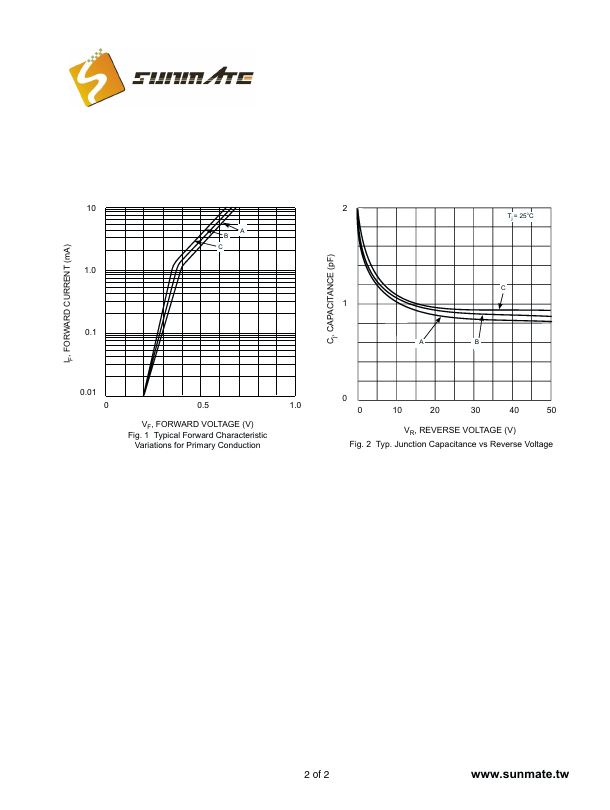

datasheet Preview Page 2

Datasheet Details

Part number	SD101B, SD101A
Manufacturer	Sunmate
File Size	264.31 KB
Description	SCHOTTKY BARRIER DIODES
Datasheet	SD101A-Sunmate.pdf
Note	This datasheet PDF includes multiple part numbers: SD101B, SD101A. Please refer to the document for exact specifications by model.

SD101B Product details

Features

Low Forward Voltage Drop.
Guard Ring Construction for Transient Protection.
Low Reverse Recovery Time.
Low Reverse Capacitance Mechanical Data.
Case: DO-35, Plastic.
Leads: Solderable per MIL-STD-202, Method 208.
Marking: Type Number.
Polarity: Cathode Band.
Weight: 0.13 grams (approx. ) DO-35(GLASS) 0.079(2.0) MAX 1.0 2(26.0) MIN. 0.165 (4.2) MAX 0.020(0.52) TYP 1.0 2(26.0) MIN. Dimensions in millimeters Maximum Ratings @ TA = 25°C unless othe.
