SDM03U40 SURFACE MOUNT SCHOTTKY BARRIER DIODE

Sunmate

Description

SDM03U40 SURFACE MOUNT SCHOTTKY BARRIER DIODE .

📥 Download Datasheet

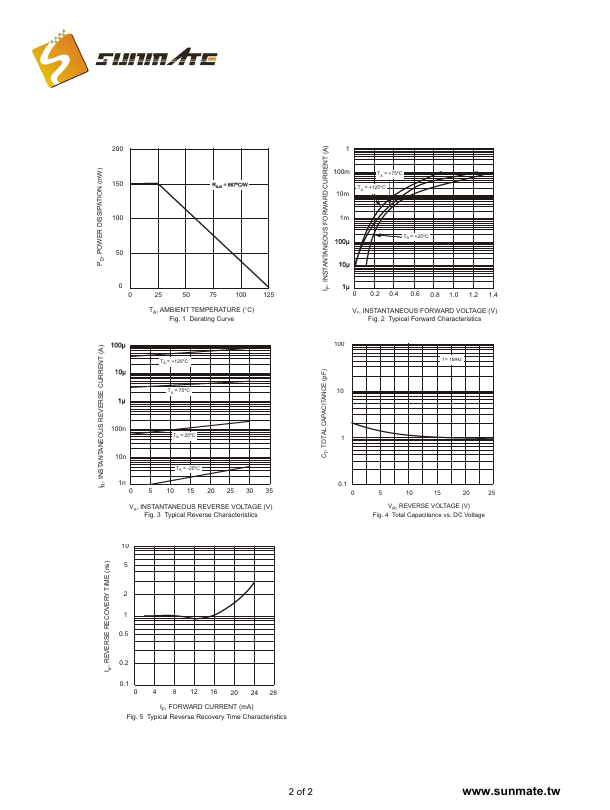

SDM03U40 Datasheet Preview — Preview of SDM03U40 PDF

Datasheet Specifications

Part number: SDM03U40
Manufacturer: Sunmate
File Size: 409.77 KB
Datasheet: SDM03U40-Sunmate.pdf
Description: SURFACE MOUNT SCHOTTKY BARRIER DIODE

Applications

* ! Low Capacitance Mechanical Data ! Case: SOD-523, Molded Plastic ! Marking Code: LK ! Weight: 0.002 grams (approx. ) G D C A SOD-523 B Dim Min Max A 1.50 1.70 B 1.10 1.30 C 0.25 0.35 D 0.70 0.90 E 0.10 0.20 G 0.50 0.70 All Dimensions in mm E Maximum Ratings @ TA = 25°C unless o
