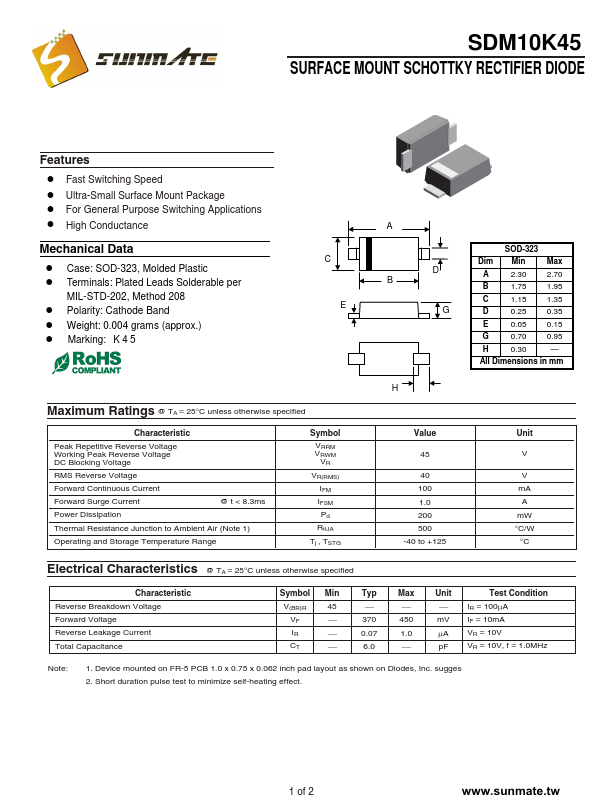

SDM10K45
Features
! Fast Switching Speed ! Ultra-Small Surface Mount Package ! For General Purpose Switching Applications ! High Conductance
Mechanical Data
! Case: SOD-323, Molded Plastic ! Terminals: Plated Leads Solderable per
MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 0.004 grams (approx.) ! Marking: K 4 5
SOD-323
Dim Min
Max
1.75 1.95
1.15 1.35
0.25 0.35
0.05 0.15
0.70 0.95
- All Dimensions in mm
Maximum Ratings @ TA = 25°C unless otherwise specified
Characteristic
Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage
RMS Reverse Voltage
Forward Continuous Current
Forward Surge Current
@ t < 8.3ms
Power Dissipation
Thermal Resistance Junction to Ambient Air (Note 1)
Operating and Storage Temperature Range
Symbol VRRM VRWM VR
VR(RMS) IFM IFSM Pd Rq JA
Tj , TSTG
Value 45 40 100 1.0 200 500
-40 to...
