SDM20U40 - SURFACE MOUNT SCHOTTKY BARRIER DIODE

Sunmate

📥 Download Datasheet

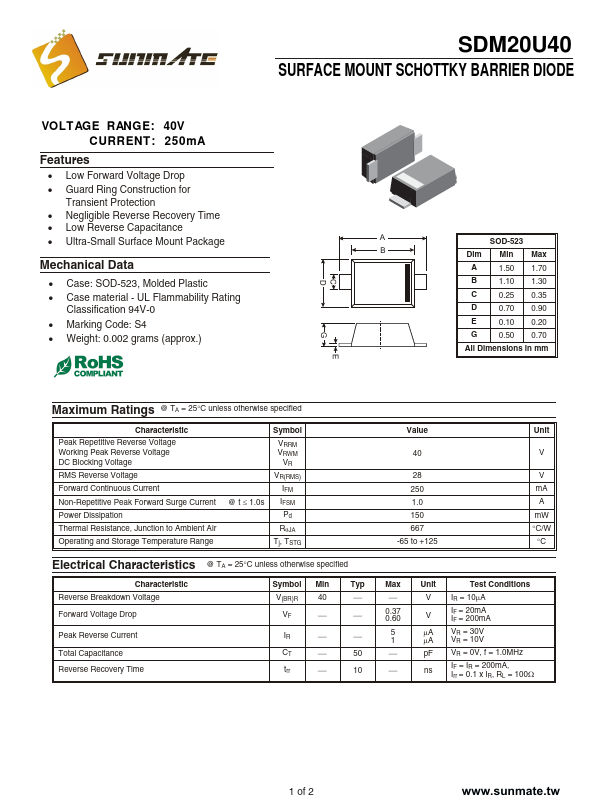

SDM20U40 Datasheet Preview — Preview of SDM20U40 PDF

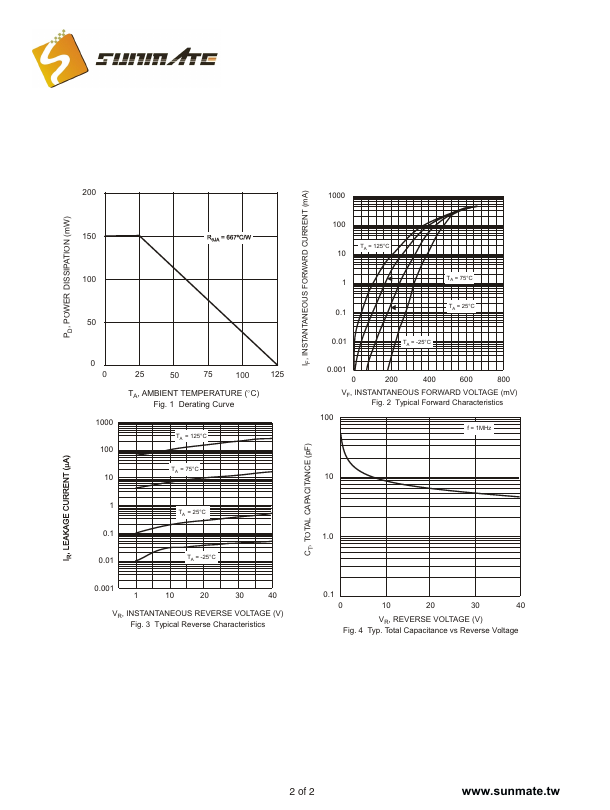

datasheet Preview Page 2

Datasheet Details

Part number	SDM20U40
Manufacturer	Sunmate
File Size	390.10 KB
Description	SURFACE MOUNT SCHOTTKY BARRIER DIODE
Datasheet	SDM20U40-Sunmate.pdf

SDM20U40 Product details

Features

Low Forward Voltage Drop.
Guard Ring Construction for Transient Protection.
Negligible Reverse Recovery Time.
Low Reverse Capacitance.
Ultra-Small Surface Mount Package Mechanical Data.
Case: SOD-523, Molded Plastic.
Case material - UL Flammability Rating Classification 94V-0.
Marking Code: S4.
Weight: 0.002 grams (approx. ) G D C A SOD-523 B Dim Min Max A 1.50 1.70 B 1.10 1.30 C 0.25 0.35 D 0.70 0.90 E 0.10 0.20 G 0.50 0.70 All Di.
