SDMK0340L SURFACE MOUNT SCHOTTKY BARRIER DIODE

Sunmate

Description

SDMK0340L SURFACE MOUNT SCHOTTKY BARRIER DIODE .

📥 Download Datasheet

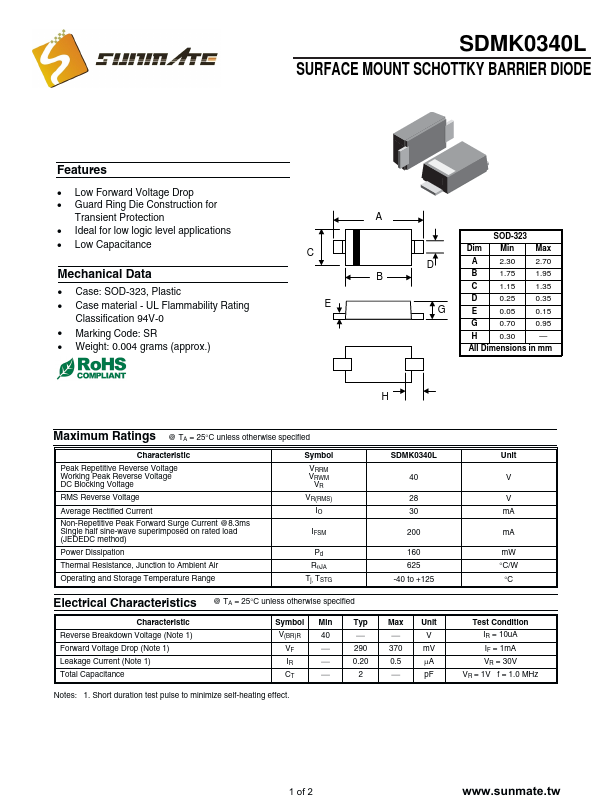

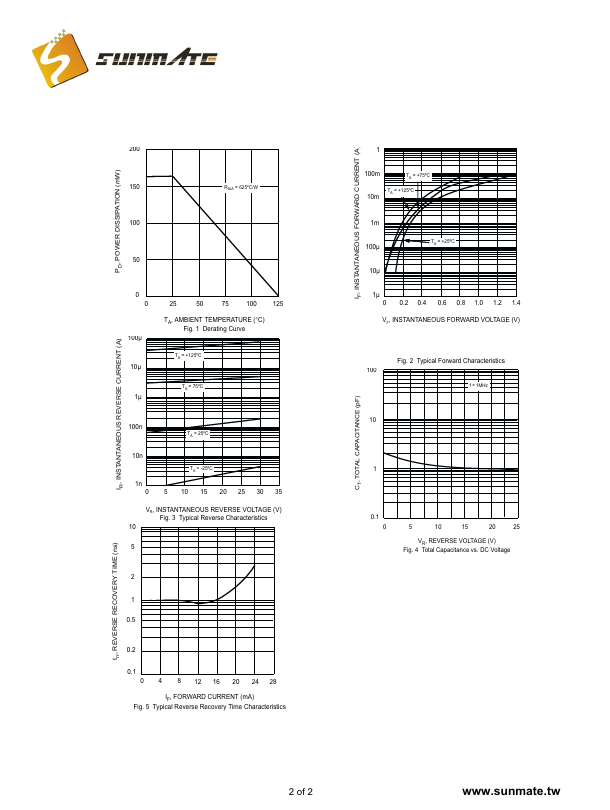

SDMK0340L Datasheet Preview — Preview of SDMK0340L PDF

Datasheet Specifications

Part number: SDMK0340L
Manufacturer: Sunmate
File Size: 388.50 KB
Datasheet: SDMK0340L-Sunmate.pdf
Description: SURFACE MOUNT SCHOTTKY BARRIER DIODE

Features

* Low Forward Voltage Drop
* Guard Ring Die Construction for Transient Protection

Applications

* Low Capacitance Mechanical Data
* Case: SOD-323, Plastic
* Case material - UL Flammability Rating Classification 94V-0
* Marking Code: SR
* Weight: 0.004 grams (approx. ) A SOD-323 C Dim Min Max D A 2.30 2.70 B B 1.75 1.95 C 1.15 1.35 E D 0.25 0.35 G E 0.05 0
