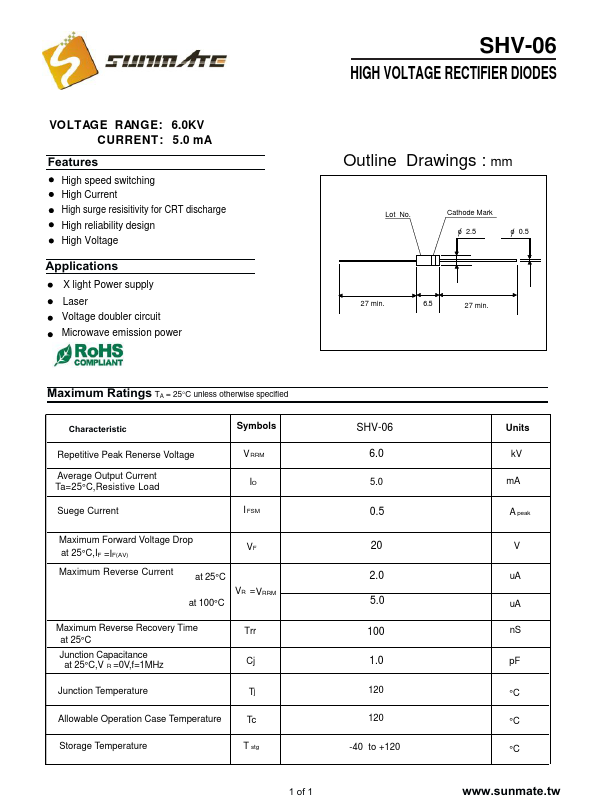

SHV-06
Features
High speed switching High Current High surge resisitivity for CRT discharge High reliability design High Voltage
Applications
X light Power supply Laser Voltage doubler circuit Microwave emission power
HIGH VOLTAGE RECTIFIER DIODES
Outline Drawings : mm
Lot No.
Cathode Mark o 2.5 o 0.5
27 min.
27 min.
Maximum Ratings TA = 25°C unless otherwise specified
Characteristic
Repetitive Peak Renerse Voltage Average Output Current Ta=25°C,Resistive Load
Suege Current
Symbols V RRM IO I FSM
Maximum Forward Voltage Drop VF at 25°C,IF =IF(AV)
Maximum Reverse Current at 25°C at 100°C
VR =VRRM
Maximum Reverse Recovery Time
Trr at 25°C
Junction Capacitance at 25°C,V R =0V,f=1MHz
Cj
Junction Temperature
Tj
Allowable Operation Case Temperature
Tc
Storage Temperature
T stg
SHV-06 6.0
0.5 20 2.0 5.0 100 1.0
120 120 -40 to +120
1 of 1
Units k V m A A peak V u A u A n S p F °C °C...
