Datasheet Specifications
- Part number
- SHV-12
- Manufacturer
- Sunmate
- File Size
- 74.16 KB
- Datasheet
- SHV-12-Sunmate.pdf
- Description
- HIGH VOLTAGE RECTIFIER DIODES
Description

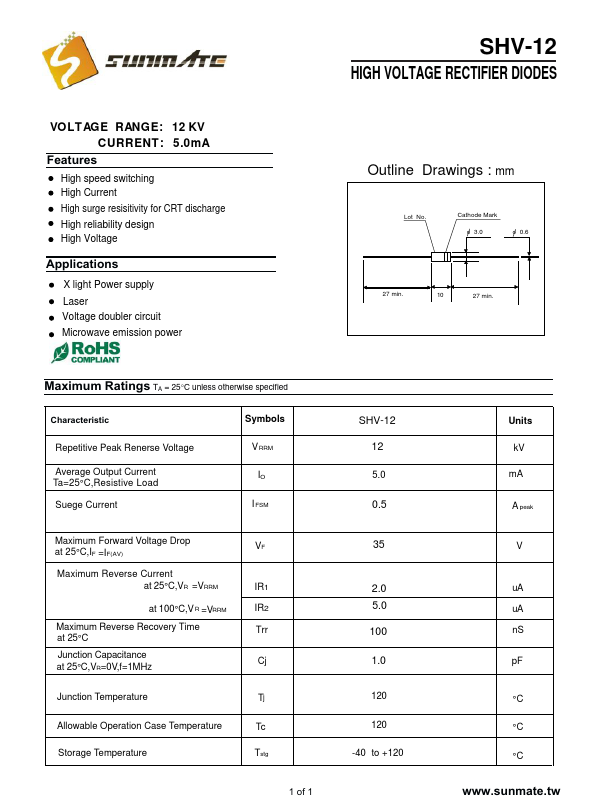

SHV-12 HIGH VOLTAGE RECTIFIER DIODES VOLTAGE RANGE: 12 KV CURRENT: 5.0m A .
Applications
* X light Power supply Laser Voltage doubler circuit Microwave emission power Outline Drawings : mm Lot No. Cathode Mark o 3.0 o 0.6 27 min. 10 27 min. Maximum Ratings TA = 25°C unless otherwise specified Characteristic Repetitive Peak Renerse Voltage Average Output Current Ta=25°C,ResistiveSHV-12 Distributors
