Datasheet Specifications
- Part number
- SHV-20
- Manufacturer
- Sunmate
- File Size
- 73.91 KB
- Datasheet
- SHV-20-Sunmate.pdf
- Description
- HIGH VOLTAGE RECTIFIER DIODES
Description

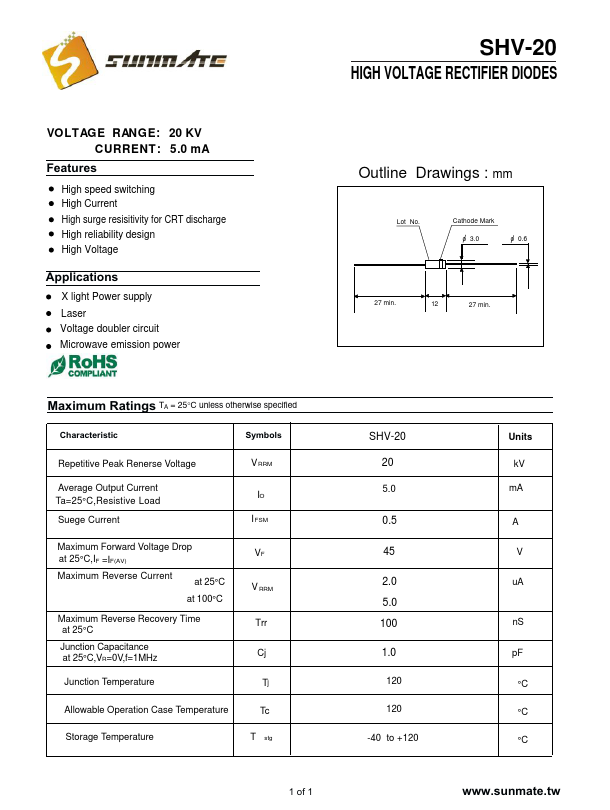

SHV-20 HIGH VOLTAGE RECTIFIER DIODES VOLTAGE RANGE: 20 KV CURRENT: 5.0 m A .
Applications
* X light Power supply Laser Voltage doubler circuit Microwave emission power Outline Drawings : mm Lot No. Cathode Mark o 3.0 o 0.6 27 min. 12 27 min. Maximum Ratings TA = 25°C unless otherwise specified Characteristic Symbols Repetitive Peak Renerse Voltage Average Output Current Ta=25°C,SHV-20 Distributors
