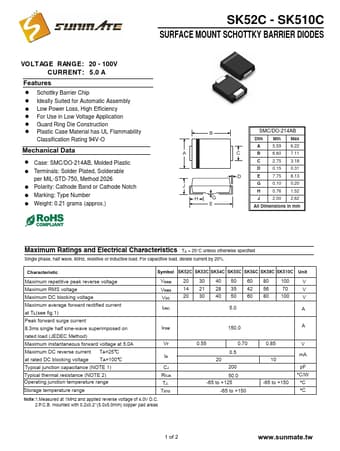

SK510C
Features
! Schottky Barrier Chip
! Ideally Suited for Automatic Assembly
! Low Power Loss, High Efficiency
! For Use in Low Voltage Application
! Guard Ring Die Construction
! Plastic Case Material has UL Flammability
B SMC/DO-214AB
C lassific a tio n R ating 9 4V-O Dim Min Max
Mechanical Data
A 5.59 6.22 A C B 6.60 7.11
! Case: SMC/DO-214AB, Molded Plastic
! Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026
! Polarity: Cathode Band or Cathode Notch ! Marking: Type Number ! Weight: 0.21 grams (approx.)
C 2.75 3.18 D 0.15 0.31 D E 7.75 8.13 G 0.10 0.20 H 0.76 1.52 J 2.00 2.62 All Dimensions in mm
Maximum Ratings and Electrical Characteristics TA = 25°C unless otherwise specified
Single phase, half wave, 60Hz,...
