SMF501C - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES

Datasheet Summary

Features

  • ! Glass Passivated Die Construction ! Fast Recovery Time for High Efficiency ! Low Forward Voltage Drop and High Current Capability ! Ideally Suited for Automatic Assembly ! Plastic Material: UL Flammability Classification Rating 94V-0 Mechanical Data ! Case: SMC(DO-214AB),Molded Plastic ! Terminals: Solder Plated Terminal - Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band or Cathode Notch ! Marking: Type Number ! Weight: 0.21 grams (approx. ) B A C D J H G E SMC/DO-214AB.

📥 Download Datasheet

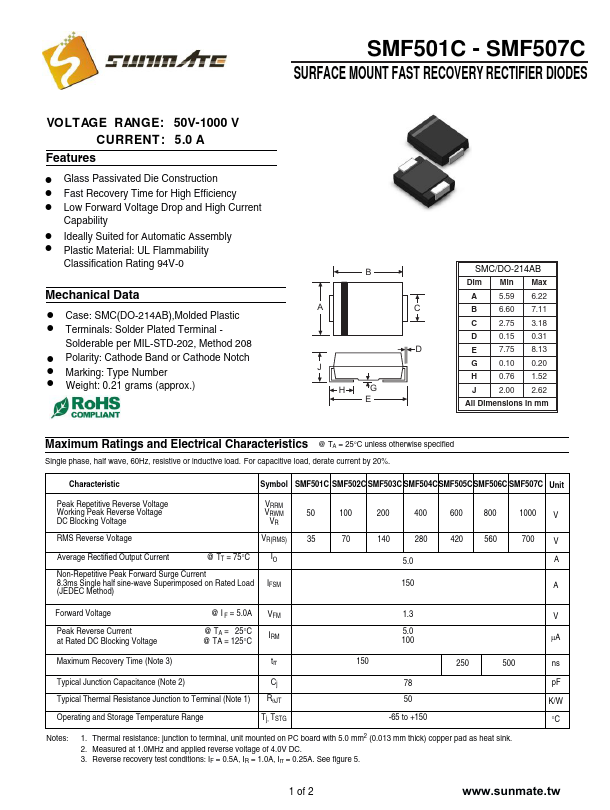

Datasheet preview – SMF501C

Datasheet Details

Part number SMF501C
Manufacturer Sunmate
File Size 232.26 KB
Description SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
Datasheet download datasheet SMF501C Datasheet

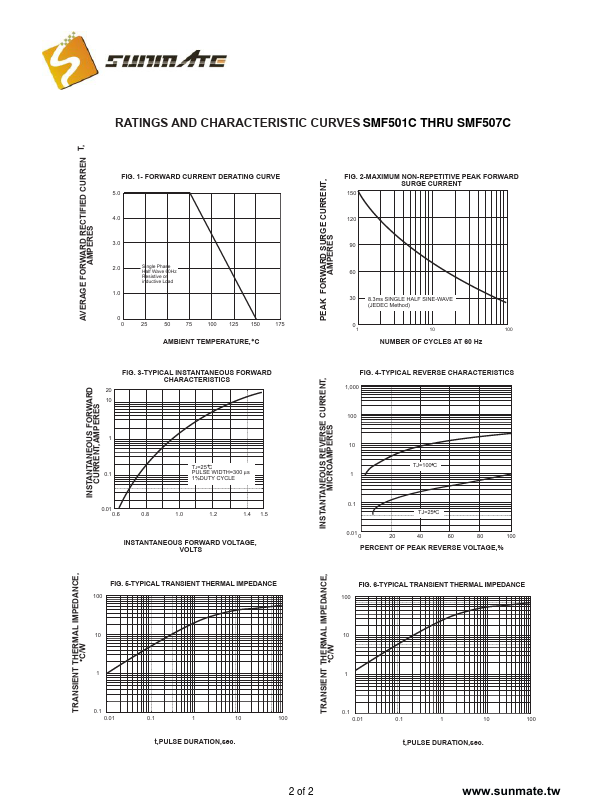

Additional preview pages of the SMF501C datasheet.

📁 Similar Datasheet

  • SMF501C - 5.0 Amp Surface Mount Silicon Fast Recovery Rectifiers (SeCoS)
  • SMF502C - 5.0 Amp Surface Mount Silicon Fast Recovery Rectifiers (SeCoS)
  • SMF503C - 5.0 Amp Surface Mount Silicon Fast Recovery Rectifiers (SeCoS)
  • SMF504C - 5.0 Amp Surface Mount Silicon Fast Recovery Rectifiers (SeCoS)
  • SMF505C - 5.0 Amp Surface Mount Silicon Fast Recovery Rectifiers (SeCoS)
  • SMF506C - 5.0 Amp Surface Mount Silicon Fast Recovery Rectifiers (SeCoS)
  • SMF507C - 5.0 Amp Surface Mount Silicon Fast Recovery Rectifiers (SeCoS)
  • SMF5.0 - SURFACE MOUNT UNIDIRECTIONAL AND BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSORS (HY)
  • SMF5.0A - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR (KD)
  • SMF5.0A - ZENER OVERVOLTAGE TRANSIENT SUPPRESSOR (EIC)
Other Datasheets by Sunmate
  • SMF502C - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
  • SMF503C - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
  • SMF504C - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
  • SMF505C - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
  • SMF506C - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
  • SMF507C - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
  • SMF201B - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
  • SMF202B - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES

Full PDF Text Transcription

Click to expand full text
SMF501C - SMF507C SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES VOLTAGE RANGE: 50V-1000 V CURRENT: 5.0 A Features ! Glass Passivated Die Construction ! Fast Recovery Time for High Efficiency ! Low Forward Voltage Drop and High Current Capability ! Ideally Suited for Automatic Assembly ! Plastic Material: UL Flammability Classification Rating 94V-0 Mechanical Data ! Case: SMC(DO-214AB),Molded Plastic ! Terminals: Solder Plated Terminal - Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band or Cathode Notch ! Marking: Type Number ! Weight: 0.21 grams (approx.) B A C D J H G E SMC/DO-214AB Dim Min Max A 5.59 6.22 B 6.60 7.11 C 2.75 3.18 D 0.15 0.31 E 7.75 8.13 G 0.10 0.20 H 0.76 1.52 J 2.00 2.
