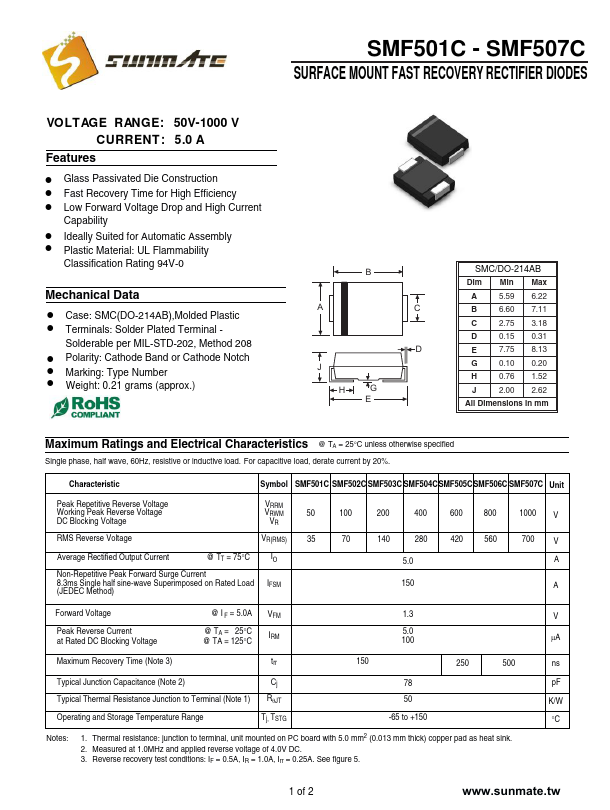

SMF506C, SMF501C - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES

Sunmate

Datasheet Details

Part number	SMF506C, SMF501C
Manufacturer	Sunmate
File Size	232.26 KB
Description	SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
Datasheet	SMF501C-Sunmate.pdf
Note	This datasheet PDF includes multiple part numbers: SMF506C, SMF501C. Please refer to the document for exact specifications by model.

! Glass Passivated Die Construction ! Fast Recovery Time for High Efficiency ! Low Forward Voltage Drop and High Current Capability ! Ideally Suited for Automatic Assembly ! Plastic Material: UL Flammability Classification Rating 94V-0 Mechanical Data ! Case: SMC(DO-214AB),Molded Plastic ! Terminals: Solder Plated Terminal - Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band or Cathode Notch ! Marking: Type Number ! Weight: 0.21 grams (approx. ) B A C D J H G E SMC/DO-214AB.
