SRR0 - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES

Sunmate

Datasheet Details

Part number	SRR0
Manufacturer	Sunmate
File Size	391.68 KB
Description	SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
Datasheet	SRR0-Sunmate.pdf

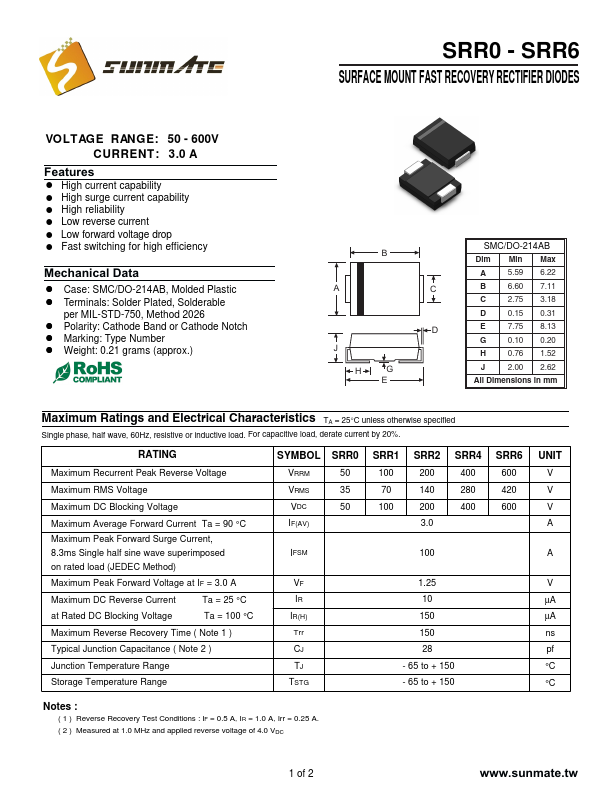

! High current capability ! High surge current capability ! High reliability ! Low reverse current ! Low forward voltage drop ! Fast switching for high efficiency Mechanical Data ! Case: SMC/DO-214AB, Molded Plastic ! Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026 ! Polarity: Cathode Band or Cathode Notch ! Marking: Type Number ! Weight: 0.21 grams (approx. ) SMC/DO-214AB B Dim Min Max A 5.59 6.22 A C B 6.60 7.11 C 2.75 3.18 D 0.15 0.31 D E 7.75 8.13 G 0.10 0.20.
