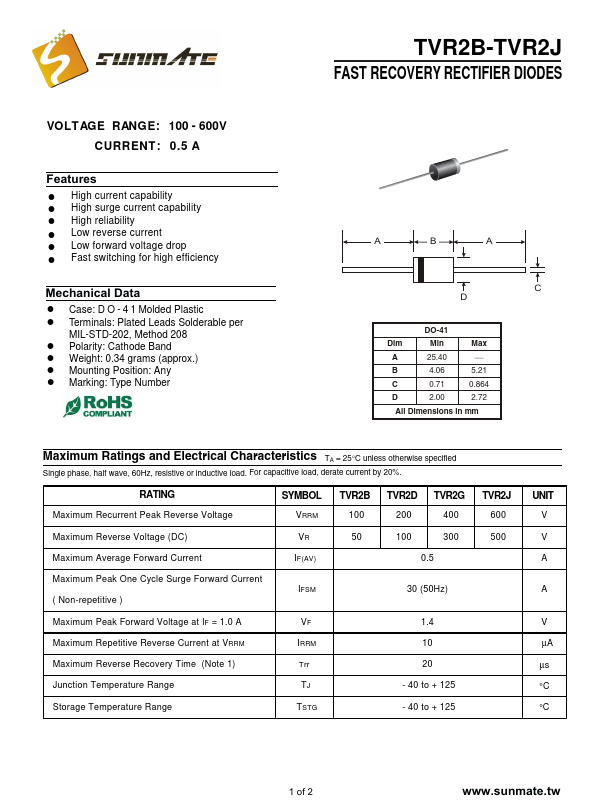

TVR2B-TVR2J
FAST RECOVERY RECTIFIER DIODES
VOLTAGE RANGE: 100 - 600V
CURRENT: 0.5 A
Features
! High current capability ! High surge current capability ! High reliability ! Low reverse current ! Low forward voltage drop ! Fast switching for high efficiency
Mechanical Data
! Case: D O - 4 1 Molded Plastic ! Terminals: Plated Leads Solderable per
MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 0.34 grams (approx.) ! Mounting Position: Any ! Marking: Type Number
A
B
A
C D
DO-41
Dim
Min
Max
A
25.40
¾
B
4.06
5.21
C
0.71
0.864
D
2.00
2.72
All Dimensions in mm

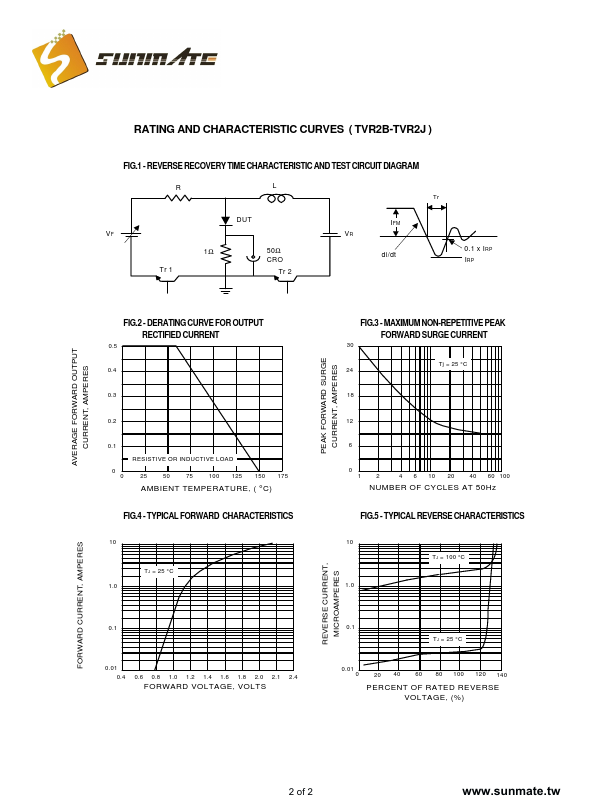

Maximum Ratings and Electrical Characteristics TA = 25°C unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
