U1ZB30

The U1ZB30 is SURFACE MOUNT SILICON ZENER DIODES designed by Sunmate.

Product Overview

Sunmate

Part number	U1ZB30, U1ZB6.8
Manufacturer	Sunmate
File Size	396.38 KB
Description	SURFACE MOUNT SILICON ZENER DIODES
Datasheet	U1ZB6.8-Sunmate.pdf
Note	This datasheet PDF includes multiple part numbers: U1ZB30, U1ZB6.8. Please refer to the document for exact specifications by model.

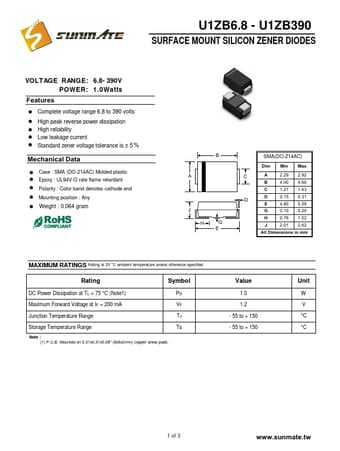

Additional preview pages of the U1ZB30 datasheet.

! Complete voltage range 6.8 to 390 volts ! High peak reverse power dissipation ! High reliability ! Low leakage current ! Standard zener voltage tolerance is ± 5 %. Mechanical Data ! Case : SMA (DO-214AC) Molded plastic ! Epoxy : UL94V-O rate flame retardant ! Polarity : Color band denotes cathode end ! Mounting position : Any ! Weight : 0.064 gram B A J H G E SMA(DO-214AC) Dim Min Max C A 2.29 2.92 B 4.00 4.60 C 1.27 1.63 D D 0.15 0.31 E 4.80 5.59 G 0.10 0.20 H 0.76 1.52 J 2.01 2.62 All Di.
