W04 SILICON BRIDGE RECTIFIERS

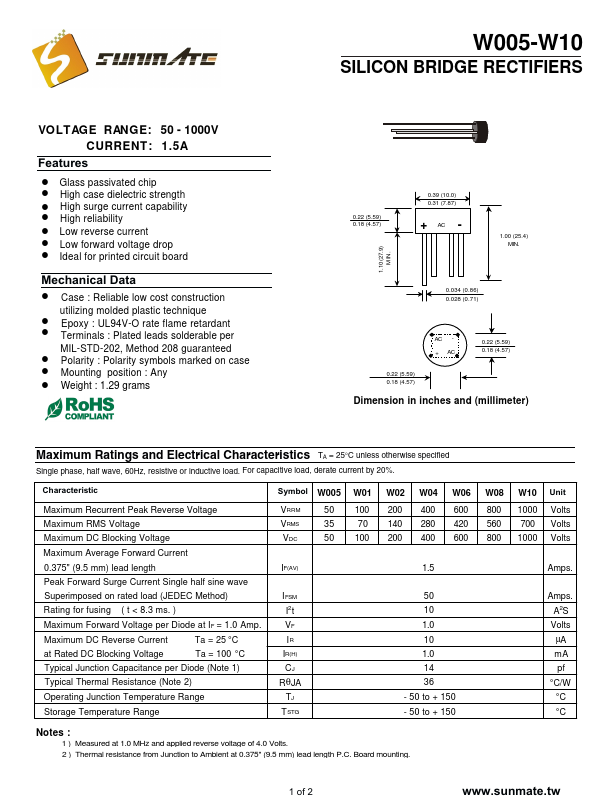

📥 Download Datasheet Datasheet Preview Page 1

Description

W005-W10 SILICON BRIDGE RECTIFIERS VOLTAGE RANGE: 50 - 1000V CURRENT: 1.5A .

📥 Download Datasheet

Preview of W04 PDF

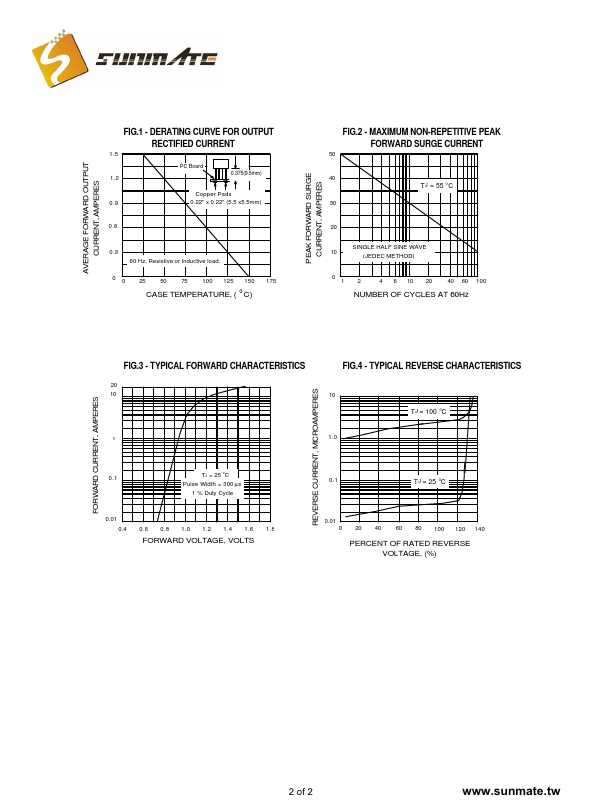

datasheet Preview Page 2

Datasheet Specifications

Part number
W04
Manufacturer
Sunmate
File Size
406.43 KB
Datasheet
W04-Sunmate.pdf
Description
SILICON BRIDGE RECTIFIERS

Features

* ! Glass passivated chip ! High case dielectric strength ! High surge current capability ! High reliability ! Low reverse current ! Low forward voltage drop ! Ideal for printed circuit board Mechanical Data ! Case : Reliable low cost construction utilizing molded plastic technique ! Epoxy : UL94V-O r
