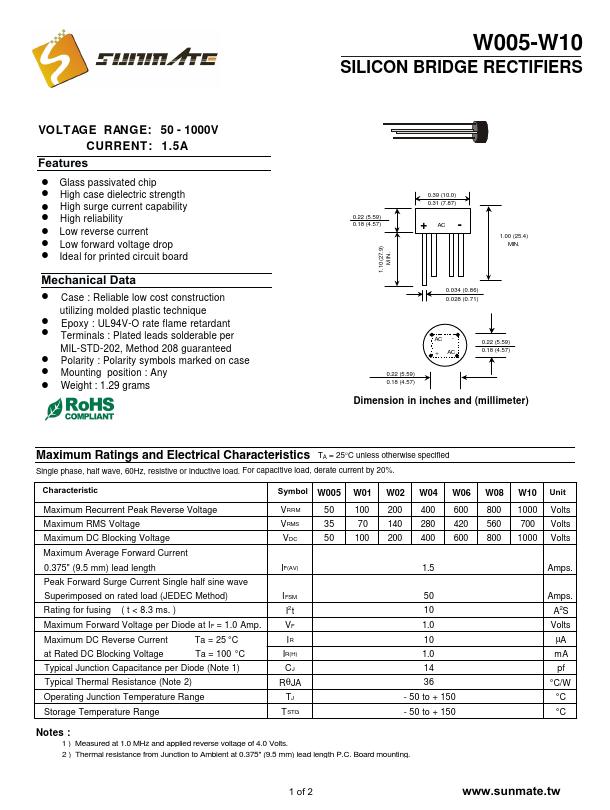

W10 - SILICON BRIDGE RECTIFIERS

Sunmate

Datasheet Details

! Glass passivated chip ! High case dielectric strength ! High surge current capability ! High reliability ! Low reverse current ! Low forward voltage drop ! Ideal for printed circuit board Mechanical Data ! Case : Reliable low cost construction utilizing molded plastic technique ! Epoxy : UL94V-O rate flame retardant ! Terminals : Plated leads solderable per MIL-STD-202, Method 208 guaranteed ! Polarity : Polarity symbols marked on case ! Mounting position : Any ! Weight : 1.29 grams 0.22 (5.5.
