SCQH045N170 1700V N-Channel SiC Power MOSFET

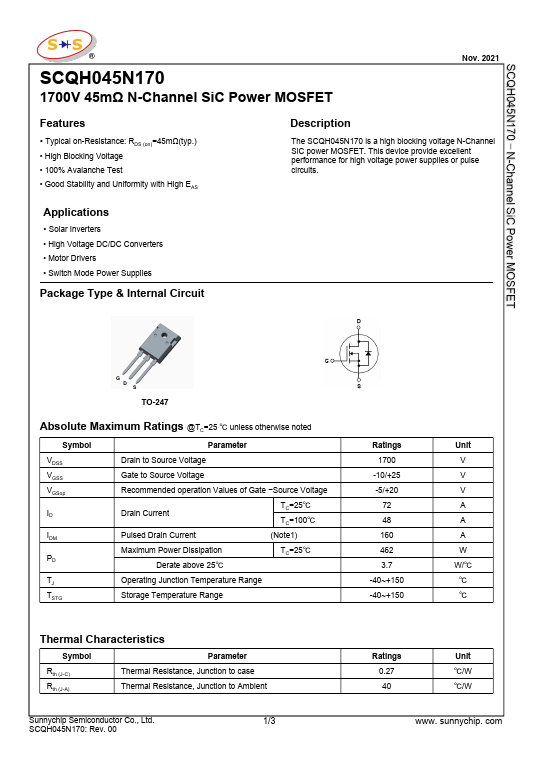

📥 Download Datasheet  Datasheet Preview Page 1

Description

SCQH045N170 1700V 45mΩ N-Channel SiC Power MOSFET Nov.2021 .
The SCQH045N170 is a high blocking voltage N-Channel SiC power MOSFET.

📥 Download Datasheet

Preview of SCQH045N170 PDF

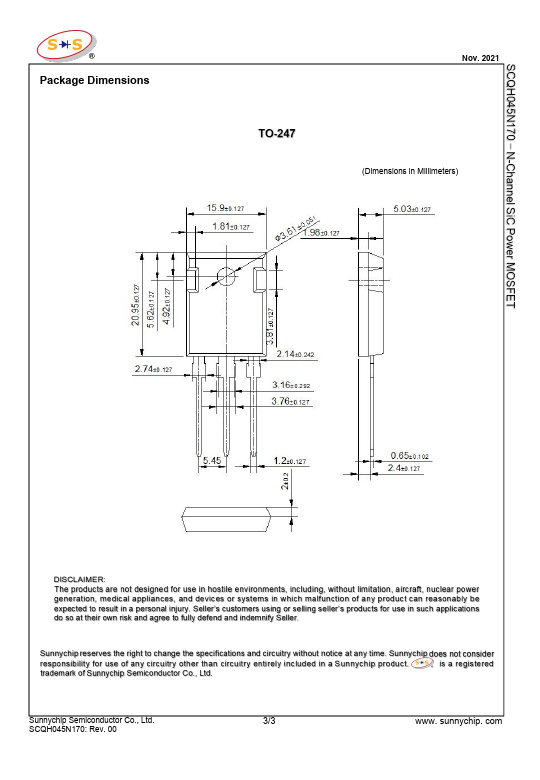

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
SCQH045N170
Manufacturer
Sunnychip
File Size
290.08 KB
Datasheet
SCQH045N170-Sunnychip.pdf
Description
1700V N-Channel SiC Power MOSFET

Features

* Typical on-Resistance: RDS (on)=45mΩ(typ. )
* High Blocking Voltage
* 100% Avalanche Test

Applications

* Solar Inverters
* High Voltage DC/DC Converters
* Motor Drivers
* Switch Mode Power Supplies Package Type & Internal Circuit G DS TO-247 Absolute Maximum Ratings @TC=25 ℃ unless otherwise noted Symbol Parameter VDSS VGSS VGSop ID IDM PD Drain to Source Voltage
