ABS10, ABS1 SURFACE MOUNT FAST SWITCHING RECTIFIER

ABS10 Description

Suntan® Su® ABS1 THRU ABS10 SURFACE MOUNT FAST SWITCHING RECTIFIER REVERSE VOLTAGE 50 to 1000 Volts FORWARD CURRENT 1.0 Ampere FEATU RE S *Glass.

ABS10 Applications

* Low leakage.
* High forward surge current capability.
* High temperature soldering guaranteed: 260℃/10 seconds at terminals. Mechanical Data
* Case: Molded plastic body.
* Epoxy: UL94V-0 rate flame retardant.
* Polarity: Molded on body.
* Lead: Plated terminals solderable per

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ABS10, ABS1. Please refer to the document for exact specifications by model.

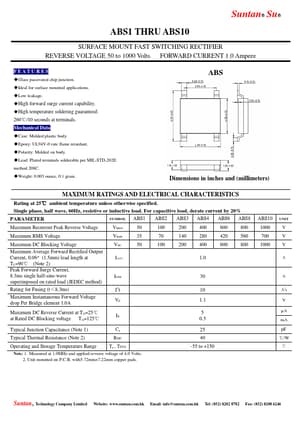

datasheet Preview Page 2

Datasheet Details

Part number
ABS10, ABS1
Manufacturer
Suntan
File Size
256.18 KB
Datasheet
ABS1-Suntan.pdf
Description
SURFACE MOUNT FAST SWITCHING RECTIFIER
Note
This datasheet PDF includes multiple part numbers: ABS10, ABS1.
Please refer to the document for exact specifications by model.
