BZV55C10, BZV55B3V3 Datasheet - Suntan

BZV55C10 - SILICON PLANAR ZENER DIODES

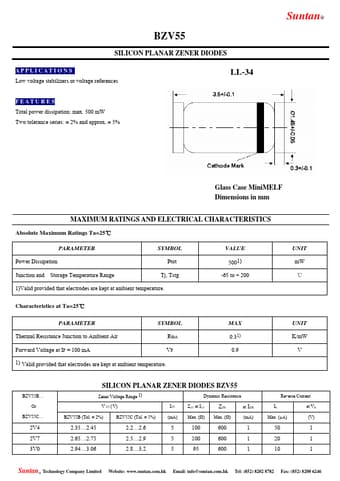

BZV55 SILICON PLANAR ZENER DIODES APPLI CAT I O N S Low voltage stabilizers or voltage references LL-34 FEAT U R E S Total power dissipation: max. 500 mW Two tolerance series: ± 2% and approx. ± 5% Suntan® Glass Case MiniMELF Dimensions in mm MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Absolute Maximum Ratings Ta=25℃ PARAMETER SYMBOL Power Dissipation Ptot Junction and Storage Temperature Range Tj, Tstg 1)Valid provided that electrodes are kept at ambient temperature. VALUE 5001.

BZV55B3V3-Suntan.pdf

This datasheet PDF includes multiple part numbers: BZV55C10, BZV55B3V3. Please refer to the document for exact specifications by model.
BZV55C10 Datasheet Preview Page 2 BZV55C10 Datasheet Preview Page 3

Datasheet Details

Part number:

BZV55C10, BZV55B3V3

Manufacturer:

Suntan

File Size:

305.32 KB

Description:

Silicon planar zener diodes.

Note:

This datasheet PDF includes multiple part numbers: BZV55C10, BZV55B3V3.
Please refer to the document for exact specifications by model.
