KBP2005 - SINGLE-PHASE BRIDGE RECTIFIER

Suntan

Datasheet Details

Part number	KBP2005
Manufacturer	Suntan
File Size	189.03 KB
Description	SINGLE-PHASE BRIDGE RECTIFIER
Datasheet	KBP2005 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
KBP2005	GLASS PASSIVATED BRIDGE RECTIFIER	Rectron
KBP2005	Miniature Glass Passivated Single-Phase Bridge Rectifiers	First Silicon
KBP2005	SINGLE-PHASE SILICON BRIDGE RECTIFIER	SEMTECH
KBP2005	Single Phase 2.0 AMPS. Glass Passivated Bridge Rectifiers	Kingtronics
KBP2005	Silicon Bridge Rectifiers	GME

Other Datasheets by Suntan

Part Number	Description
KBP201	SINGLE-PHASE BRIDGE RECTIFIER
KBP202	SINGLE-PHASE BRIDGE RECTIFIER
KBP204	SINGLE-PHASE BRIDGE RECTIFIER
KBP206	SINGLE-PHASE BRIDGE RECTIFIER
KBP208	SINGLE-PHASE BRIDGE RECTIFIER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

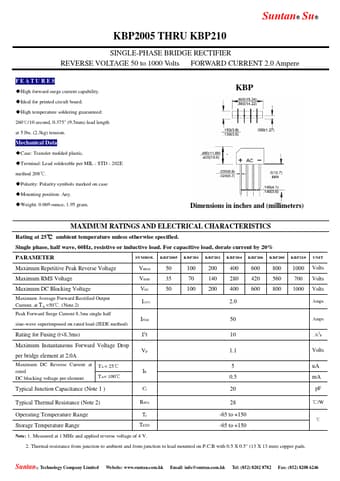

Suntan® Su® KBP2005 THRU KBP210 SINGLE-PHASE BRIDGE RECTIFIER REVERSE VOLTAGE 50 to 1000 Volts FORWARD CURRENT 2.0 Ampere FEATU RE S ◆High forward surge current capability. ◆Ideal for printed circult board. ◆High temperature soldering guaranteed: 260℃/10 second, 0.375" (9.5mm) lead length at 5 lbs. (2.3kg) tension. Mechanical Data ◆Case: Transfer molded plastic. ◆Terminal: Lead solderable per MIL - STD - 202E method 208℃. ◆Polarity: Polarity symbols marked on case ◆Mounting position: Any. ◆Weight: 0.069 ounce, 1.95 gram. KBP Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating at 25℃ ambient temperature unless otherwise specified. Single phase, half wave, 60Hz, resistive or inductive load.
