KBPC2508, KBPC25005 Datasheet - Suntan

KBPC2508 SINGLE-PHASE BRIDGE RECTIFIER

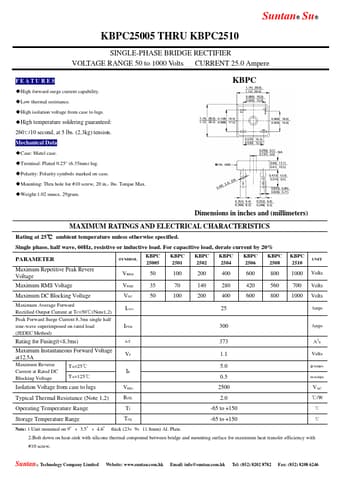

Suntan® Su® KBPC25005 THRU KBPC2510 SINGLE-PHASE BRIDGE RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 25.0 Ampere FEATU RE S High forward surge current capability. Low thermal resistance. High isolation voltage from case to lugs. High temperature soldering guaranteed: 260℃/10 second, at 5 lbs. (2.3kg) tension. Mechanical Data Case: Matel case. Terminal: Plated 0.25" (6.35mm) lug. Polarity: Polarity symbols marked on case. Mounting: Thru hole for #10 .

KBPC25005-Suntan.pdf

KBPC2508 Datasheet Preview — This datasheet PDF includes multiple part numbers: KBPC2508, KBPC25005. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

KBPC2508, KBPC25005

Manufacturer:

Suntan

File Size:

229.88 KB

Description:

Single-phase bridge rectifier.

Note:

This datasheet PDF includes multiple part numbers: KBPC2508, KBPC25005.
Please refer to the document for exact specifications by model.
