KBPC2508W SINGLE-PHASE BRIDGE RECTIFIER

Suntan® Su® KBPC25005W THRU KBPC2510W SINGLE-PHASE BRIDGE RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 25.0 Ampere FEATU RE S High forward surge current capability. Low thermal resistance. High isolation voltage from case to lugs. High temperature soldering guaranteed: 260℃/10 second, at 5 lbs. (2.3kg) tension. Mechanical Data Case: Matel case. Terminal: Plated 0.25" (6.35mm) lug. Polarity: Polarity symbols marked on case. Mounting: Thru hole for #1.

KBPC2508W Datasheet (237.20 KB)

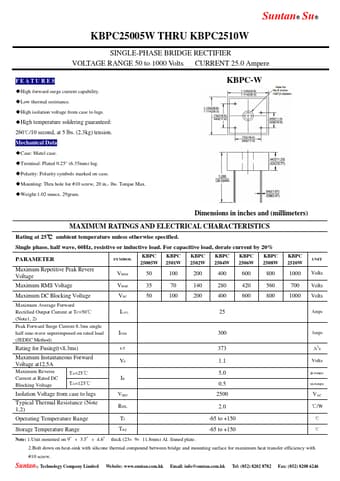

KBPC2508W Datasheet Preview — Preview of KBPC2508W PDF

Datasheet Details

Part number:

KBPC2508W

Manufacturer:

Suntan

File Size:

237.20 KB

Description:

Single-phase bridge rectifier.
