KBPC35005 Datasheet - Suntan

KBPC35005 High Current 35 AMPS. Single Phase Glass Passivated Bridge Rectifiers

Suntan® Su® KBPC35005 THRU KBPC3510 High Current 35 AMPS. Single Phase Glass Passivated Bridge Rectifiers Voltage Range 50 to 1000 Volts Current 35 Amperes FEAT U R E S Ideal for printed circuit board Reliable low cost construction technique results in inexpensive product High temperature soldering guaranteed: 260℃ / 10 seconds / 0.375” ( 9.5mm ) lead length at 5 lbs., ( 2.3 kg ) tension UL Recognized File number: E347215 KBPC25 Mechanical Data Case: Molded plasti.

KBPC35005 Datasheet (485.70 KB)

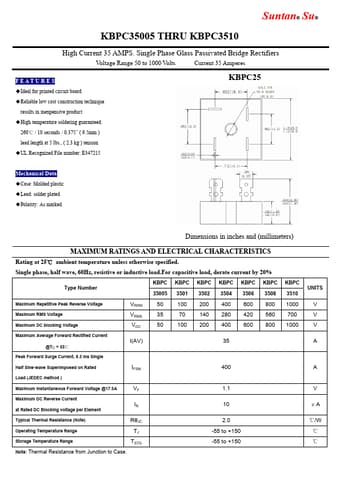

Preview of KBPC35005 PDF
KBPC35005 Datasheet Preview Page 2

Datasheet Details

Part number:

KBPC35005

Manufacturer:

Suntan

File Size:

485.70 KB

Description:

High current 35 amps. single phase glass passivated bridge rectifiers.
