SS22 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

Suntan® Su® SS22 THRU SS210 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER VOLTAGE RANGE 20 to 100 Volts CURRENT 2.0 Ampere FEATU RE S Low profile surface mount package Built in strain relief High switching speed Low voltage drop, high efficiency For use in low voltage high frequency inverters Free willing, and polarity protection applications Guardring for over voltage protection Mechanical Data Case: Transfer molded plastic Epoxy: UL 94V-0 rate flame re.

SS22 Datasheet (197.43 KB)

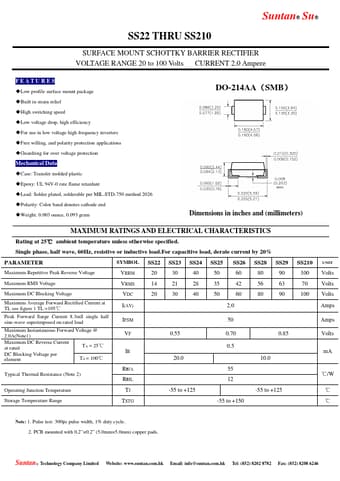

SS22 Datasheet Preview — Preview of SS22 PDF

Datasheet Details

Part number:

SS22

Manufacturer:

Suntan

File Size:

197.43 KB

Description:

Surface mount schottky barrier rectifier.
