SS35, SS32 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

SS35 Description

Suntan® Su® SS32 THRU SS310 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER VOLTAGE RANGE 20 to 100 Volts CURRENT 3.0 Ampere FEATU RE S *Low profile su.

SS35 Applications

* Guarding for over voltage protection Mechanical Data
* Case: Transfer molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Lead: Solder plated, solderable per MIL-STD-750 method 2026
* Polarity: Color band denotes cathode end
* Weight: 0.007 ounce, 0.25 gram DO-214AB (SMC) Di

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SS35, SS32. Please refer to the document for exact specifications by model.

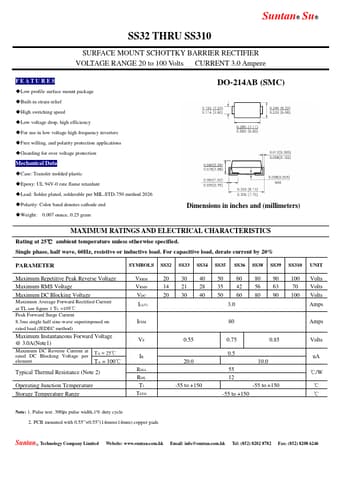

datasheet Preview Page 2

Datasheet Details

Part number
SS35, SS32
Manufacturer
Suntan
File Size
375.13 KB
Datasheet
SS32-Suntan.pdf
Description
SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Note
This datasheet PDF includes multiple part numbers: SS35, SS32.
Please refer to the document for exact specifications by model.
