TSR-065 - Trimming Potentiometer

📥 Download Datasheet

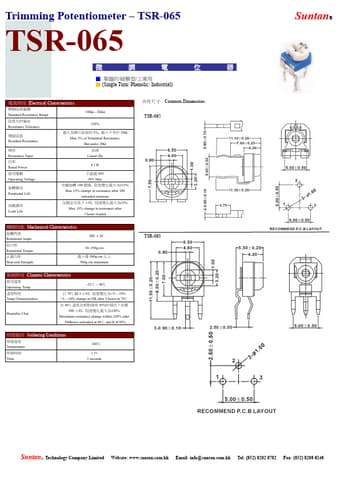

Datasheet preview – TSR-065

Datasheet Details

Part number TSR-065
Manufacturer Suntan
File Size 593.61 KB
Description Trimming Potentiometer
Datasheet download datasheet TSR-065 Datasheet
Additional preview pages of the TSR-065 datasheet.

📁 Similar Datasheet

Other Datasheets by Suntan
  • TSR-3006 - (TSR-3006 / TSR-3362) Square Trimming Potentiometer
  • TSR-3306 - Round Trimming Potentiometer
  • TSR-3309 - Round Trimming Potentiometer
  • TSR-3318 - Round Trimming Potentiometer
  • TSR-3323 - Square Trimming Potentiometer
  • TSR-3329 - Circularity Trimming Potentiometer
  • TSR-3361 - Square SMD Trimming Potentiometer
  • TSR-3362 - (TSR-3006 / TSR-3362) Square Trimming Potentiometer

Full PDF Text Transcription

Click to expand full text
Trimming Potentiometer – TSR-065 TSR-065 ˊġ ╖⚰/✳/ⶍ ˊ (Single Turn/ Phenolic/ Industrial) Electrical Characteristics ῤ⚵ Standard Resistance Range 100Ω - 2MΩ ῤ⃩ῷⶖ Resistance Tolerance Ʋ30% ῤ Residual Resistance ⣏ῤ 5%, ⣏ᶵ⣂ 30Ω Max 5% of Nominnal Resistance, But under 30Ω ⥒ Resistance Taper Linear (B) ≇ Rated Power 0.1W ἧ⡻ ᶵ 50V Operating Voltage 50V Max ⢥␥ Potational Life 100 ⚰, ῤ⊾⣏Ʋ15% Max Ʋ5% change in resistance after 100 unloaded rotations ⢥␥ Load Life ≈⭂≇ 3 ⮷, ῤ⊾⣏Ʋ5% Max Ʋ5% change in resistance after 3 hours loaded Mechanical Characteristics ⹎ Rotational Angle 200ƱġƲġ20Ʊ ㈕≃ Rotational Torque 30~350g.cm ≃ ⮷ 500g.cm ẍᶲ Stop-end Strength 500g.
