TSR-3306 - Round Trimming Potentiometer

📥 Download Datasheet

Datasheet preview – TSR-3306

Datasheet Details

Part number TSR-3306
Manufacturer Suntan
File Size 772.87 KB
Description Round Trimming Potentiometer
Datasheet download datasheet TSR-3306 Datasheet
Additional preview pages of the TSR-3306 datasheet.

📁 Similar Datasheet

Other Datasheets by Suntan
  • TSR-3309 - Round Trimming Potentiometer
  • TSR-3318 - Round Trimming Potentiometer
  • TSR-3323 - Square Trimming Potentiometer
  • TSR-3329 - Circularity Trimming Potentiometer
  • TSR-3361 - Square SMD Trimming Potentiometer
  • TSR-3362 - (TSR-3006 / TSR-3362) Square Trimming Potentiometer
  • TSR-3386 - Square Trimming Potentiometer
  • TSR-3006 - (TSR-3006 / TSR-3362) Square Trimming Potentiometer

Full PDF Text Transcription

Click to expand full text

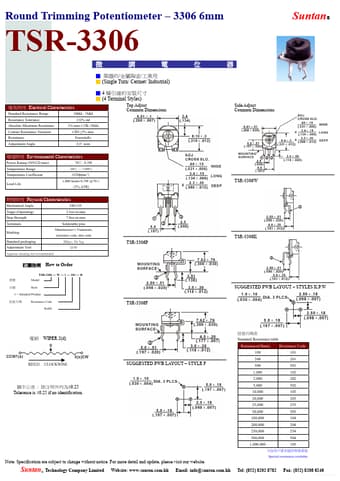

Round Trimming Potentiometer – 3306 6mm Suntan ® TSR-3306 ▓ // ▓ (Single Turn/ Cermet/ Industrial) ▓ 4 ▓ (4 Terminal Styles) Electrical Characteristics Standard Resistance Range Resistance Tolerance Absolute Minimum Resistance Contact Resistance Variation Resistance Adjustment Angle 100Ω - 1MΩ ±30% std 1% max (≤2K=30Ω) CRV≤3% max Essentially 215° nom Top Adjust Common Dimensions Side Adjust Common Dimensions Environmental Characteristics Power Rating (50VCD max) Temperature Range Temperature Coefficient Load Life 70℃, 0.3W -30℃ ~ +100℃ ±250ppm/℃ 1,000 hours 0.3W @70℃ (3% ΔTR) TSR-3306W Physical Characteristics Mechanical Angle Toque (Operating) Stop Strength Terminals Marking Standard packaging Adjustment Tool Aqueous cleaning not recommended 240°±10° 3.5oz-in.max 7.
