TSR-3329 - Circularity Trimming Potentiometer

📥 Download Datasheet

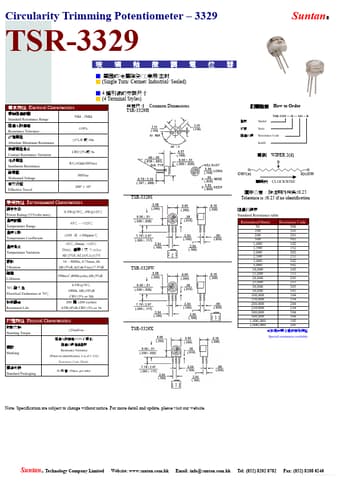

Datasheet preview – TSR-3329

Datasheet Details

Part number TSR-3329
Manufacturer Suntan
File Size 587.17 KB
Description Circularity Trimming Potentiometer
Datasheet download datasheet TSR-3329 Datasheet
Additional preview pages of the TSR-3329 datasheet.

📁 Similar Datasheet

Other Datasheets by Suntan
  • TSR-3323 - Square Trimming Potentiometer
  • TSR-3306 - Round Trimming Potentiometer
  • TSR-3309 - Round Trimming Potentiometer
  • TSR-3318 - Round Trimming Potentiometer
  • TSR-3361 - Square SMD Trimming Potentiometer
  • TSR-3362 - (TSR-3006 / TSR-3362) Square Trimming Potentiometer
  • TSR-3386 - Square Trimming Potentiometer
  • TSR-3006 - (TSR-3006 / TSR-3362) Square Trimming Potentiometer

Full PDF Text Transcription

Click to expand full text
Circularity Trimming Potentiometer – 3329 Suntan ® TSR-3329 ▓ /// ▓ (Single Turn/ Cermet/ Industrial/ Sealed) ▓ 4 ▓ (4 Terminal Styles) Electrical Characteristics Standard Resistance Range Resistance Tolerance Absolute Minimum Resistance Contact Resistance Variation Insulation Resistance Withstand Voltage Effective Travel 50Ω - 2MΩ Model Style Resistance Code RoHS Common Dimensions TSR-3329H How to Order TSR-3329 --- H --- 103 -- R ±10% ≤1% R 10n CRV≤3% 5n R1≥1GΩ(100Vac) 500Vac WIPER 2(d) CLOCKWISE 280° ± 10° TSR-3329S Environmental Characteristics Power Rating (315volts max) Temperature Range Temperature Coefficient Temperature Variation Vibration Collision 70℃ Electrical Endurance at 70℃ Rotational Life 0.
