W005 Datasheet - Suntan

W005 SINGLE-PHASE BRIDGE RECTIFIER

SuntanĀ® SuĀ® W005 THRU W10 SINGLE-PHASE BRIDGE RECTIFIER REVERSE VOLTAGE 50 to 1000 Volts FORWARD CURRENT 1.5 Amperes FEATU RE S Rating to 1000VPRV. Ideal for printed circuit board. Low forward voltage drop, high current capability. Reliable low cost construction utilizing molded epoxy technique results in inexpensive product. The plastic material has UL flammability classification 94V-0. Mechanical Data Case: Molded plastic. Polarity: As marked on Body. We.

W005 Datasheet (232.24 KB)

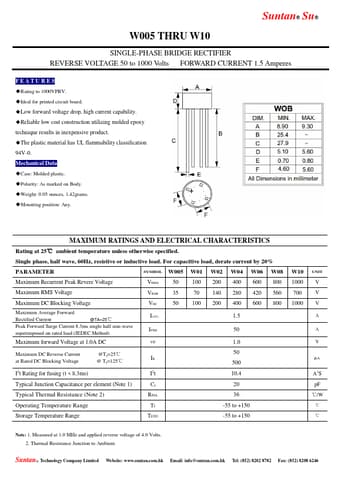

Preview of W005 PDF
W005 Datasheet Preview Page 2

Datasheet Details

Part number:

W005

Manufacturer:

Suntan

File Size:

232.24 KB

Description:

Single-phase bridge rectifier.
