SGW100N025 100V N-Channel MOSFET

Description

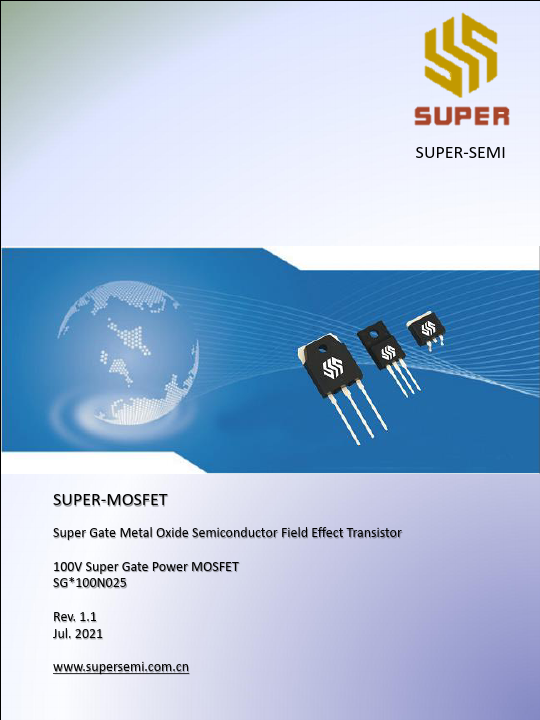

SUPER-SEMI SUPER-MOSFET Super Gate Metal Oxide Semiconductor Field Effect Transistor 100V Super Gate Power MOSFET SG *100N025 Rev.1.1 Jul.2021 ww.
The SG-MOSFET uses advanced trench MOSFET technology that is uniquely optimized to provide the most efficient high frequency switching performance.

📥 Download Datasheet

SGW100N025 Datasheet Preview — Preview of SGW100N025 PDF

Datasheet Specifications

Part number: SGW100N025
Manufacturer: Super Semiconductor
File Size: 616.79 KB
Datasheet: SGW100N025-SuperSemiconductor.pdf
Description: 100V N-Channel MOSFET

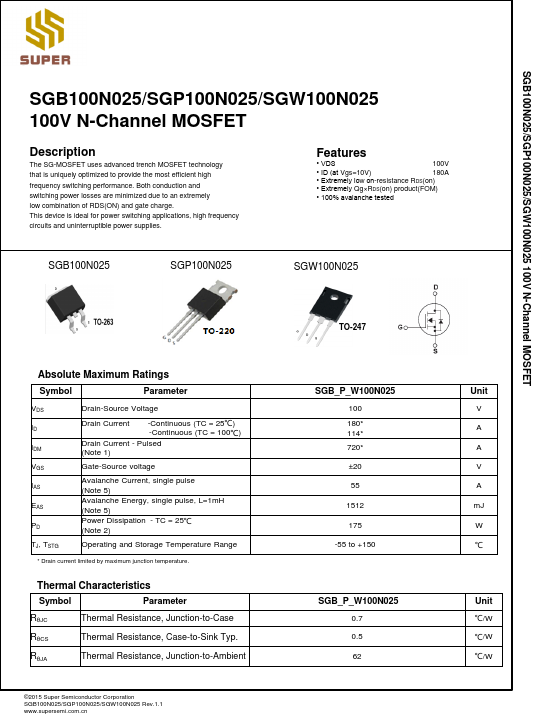

Features

* VDS 100V
* ID (at Vgs=10V) 180A
* Extremely low on-resistance RDS(on)
* Extremely Qg×RDS(on) product(FOM)
* 100% avalanche tested SGB100N025 SGP100N025 SGW100N025 Absolute Maximum Ratings Symbol Parameter VDS ID IDM VGS IAS EAS PD TJ, TSTG Dra
