SSF60R099S2E - 600V N-Channel Super-Junction MOSFET

SSF60R099S2E Description

SSF60R099S2E/SSP60R099S2E 600V N-Channel Super-Junction MOSFET Gen-Ⅱ SSF60R099S2E/SSP60R099S2E 600V N-Channel Super-Junction MOSFET Gen-Ⅱ Descriptio.
SJ-FET is new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistance and lo.

SSF60R099S2E Features

* Multi-Epi process SJ-FET
* 650V @TJ = 150 ℃
* Typ. RDS(on) = 85mΩ
* Ultra Low Gate Charge (typ. Qg = 54nC)
* 100% avalanche tested SSF60R099S2E SSP60R099S2E Absolute Maximum Ratings Symbol Parameter VDSS ID IDM VGSS EAS IAS dv/dt Drain-Source Voltage

📥 Download Datasheet

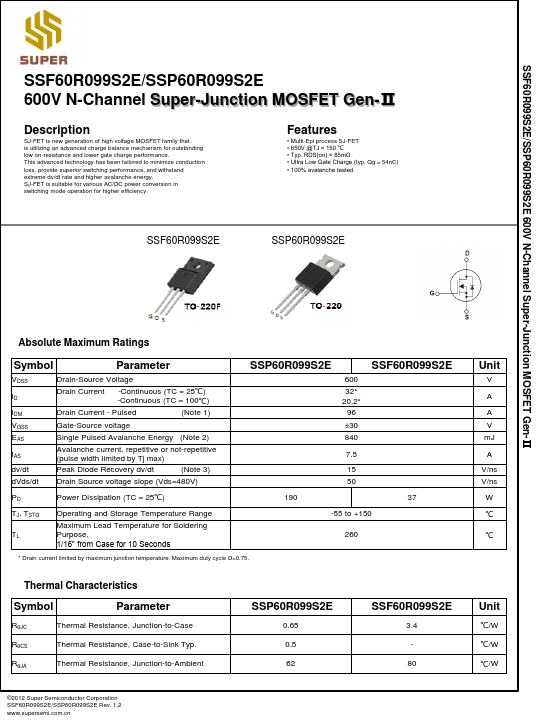

Preview of SSF60R099S2E PDF

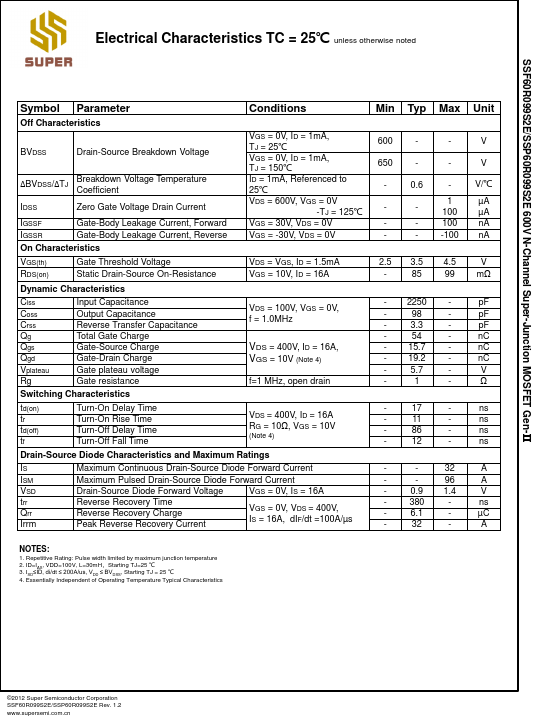

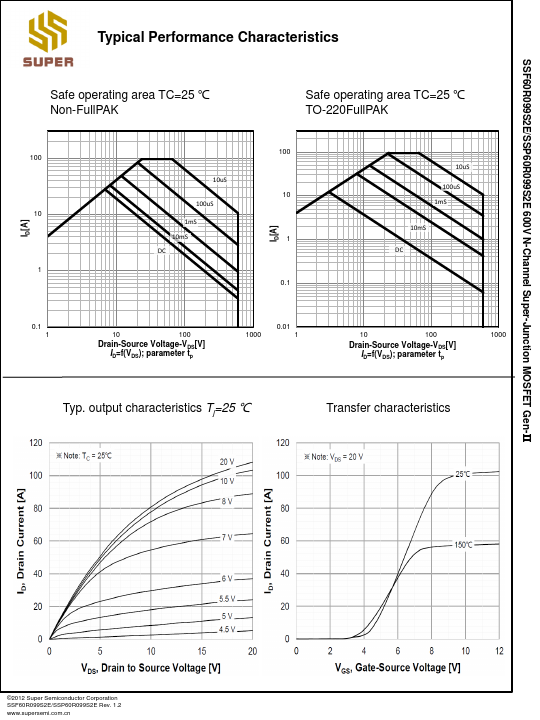

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SSF60R099S2E
Manufacturer
Super Semiconductor
File Size
726.67 KB
Datasheet
SSF60R099S2E-SuperSemiconductor.pdf
Description
600V N-Channel Super-Junction MOSFET
