HV300 - Inrush Current Limiter Controllers

Datasheet Summary

Description

The Supertex HV300, Hotswap Controller, Negative Supply controls the power supply connection during insertion of cards or modules into live backplanes.

It may be used in traditional ‘negative 48V’ powered systems or for higher voltage busses up to negative 90V.

Features

  • PWRGD = Active HIGH.
  • -10V to -90V input voltage range.
  • Few external components.
  • 0.33mA typical standby supply current.
  • Programmable over/under voltage limits with hysteresis.
  • Programmable current limit.
  • Active control during all phases of start-up.
  • Programmable timing.
  • 8-Lead SOIC package.

📥 Download Datasheet

Datasheet preview – HV300

Datasheet Details

Part number HV300
Manufacturer Supertex Inc
File Size 560.47 KB
Description Inrush Current Limiter Controllers
Datasheet download datasheet HV300 Datasheet
Additional preview pages of the HV300 datasheet.

📁 Similar Datasheet

Other Datasheets by Supertex Inc
  • HV301 - Hotswap/ Controllers with Circuit Breaker
  • HV302 - Sequencing Hotswap Controllers
  • HV310 - Inrush Current Limiter Controllers
  • HV311 - Hot Swap Controller
  • HV312 - Sequencing Hotswap Controllers
  • HV3137 - 64-Channel Serial To Parallel Converter With Open Drain Outputs
  • HV3418 - 64-Channel Serial to Parallel Converter
  • HV3922 - High Voltage PIN Diode Driver

Full PDF Text Transcription

Click to expand full text

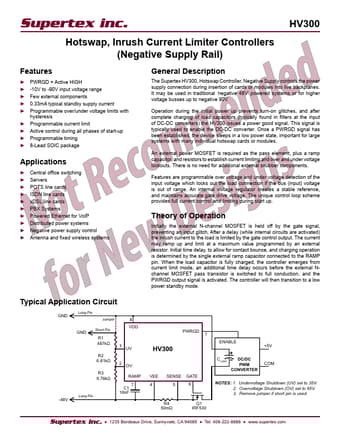

HV300 Hotswap, Inrush Current Limiter Controllers (Negative Supply Rail) Features ► PWRGD = Active HIGH ► -10V to -90V input voltage range ► Few external components ► 0.33mA typical standby supply current ► Programmable over/under voltage limits with hysteresis ► Programmable current limit ► Active control during all phases of start-up ► Programmable timing ► 8-Lead SOIC package Applications ► Central office switching ► Servers ► POTS line cards ► ISDN line cards ► xDSL line cards ► PBX Systems ► Powered Ethernet for VoIP ► Distributed power systems ► Negative power supply control ► Antenna and fixed wireless systems General Description The Supertex HV300, Hotswap Controller, Negative Supply controls the power supply connection during insertion of cards or modules into live backplanes.
