HV312 - Sequencing Hotswap Controllers

Product Overview

Supertex Inc

Datasheet Details

Part number	HV312
Manufacturer	Supertex Inc
File Size	618.90 KB
Description	Sequencing Hotswap Controllers
Datasheet	HV312 Datasheet

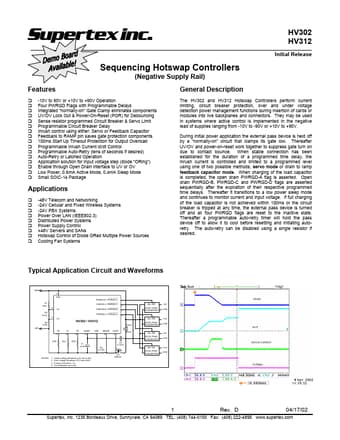

Additional preview pages of the HV312 datasheet.

Product details

Description

The HV302 and HV312 Hotswap Controllers perform current limiting, circuit breaker protection, over and under voltage detection power management functions during insertion of cards or modules into live backplanes and connectors.

Features

-10V to 90V or +10V to +90V Operation Four PWRGD Flags with Programmable Delays Integrated “normally-on” Gate Clamp eliminates components UV/OV Lock Out & Power-On-Reset (POR) for Debouncing Sense resistor programmed Circuit Breaker & Servo Limit Programmable Circuit Breaker Delay Inrush control using either: Servo or Feedback Capacitor Feedback to RAMP pin saves gate protection components 100ms Start Up Timeout Protection for Output Overload Programmable Inrush Current di/dt Control Programmabl.
