HV62208 - 32-Channel 256 Gray-Shade High Voltage Driver

Datasheet Summary

Description

Not recommended for new designs.

Please use HV632 instead.

The HV622 is a 32-channel gray-shade column driver IC designed for driving electrofluorescent displays.

Features

  • ❏ ❏ ❏ ❏ ❏ ❏ ❏ ❏ ❏ ❏ ❏ HVCMOS® technology 5V CMOS inputs Up to 80V output voltage PWM gray shade conversion Capable of 256 levels of gray shading Balanced shift clock complies with RS-422 8MHz shift and count clock frequency 16MHz data throughput rate 8 bit data bus 32 outputs per device BLANK function General.

📥 Download Datasheet

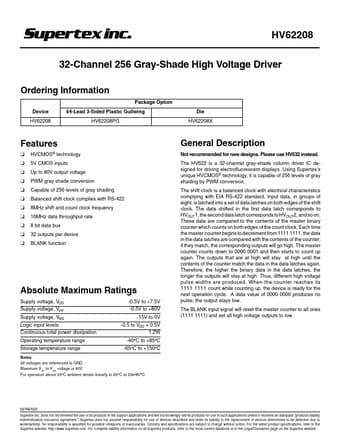

Datasheet preview – HV62208

Datasheet Details

Part number HV62208
Manufacturer Supertex Inc
File Size 463.12 KB
Description 32-Channel 256 Gray-Shade High Voltage Driver
Datasheet download datasheet HV62208 Datasheet
Additional preview pages of the HV62208 datasheet.

📁 Similar Datasheet

  • HV6 - Fast Switching High Voltage Rectifier (Sirocco)
  • HV60 - 32-Channel Liquid Crystal Display Driver (Supertex)
  • HV600S10 - High Voltage Silicon Rectifier Diode (HVGT)
  • HV600S15 - High Voltage Silicon Rectifier Diode (HVGT)
  • HV600S20 - High Voltage Silicon Rectifier Diode (HVGT)
  • HV632 - 256 Gray-Shade High Voltage Driver (Supertex)
  • HV633 - 128-Level Amplitude Gray-Shade Display Column Driver (Supertex)
  • HV6506 - 32-Channel LCD Driver (Supertex)
  • HV6810 - 10-Channel Serial-Input Latched Display Driver (Microchip)
  • HV6X1P8 - SHORT PROTECTOR (Frontier Electronics)
Other Datasheets by Supertex Inc
  • HV623 - 32-Channel 128-Level Amplitude Gray-Shade Display Column Driver
  • HV6008 - 32-Channel 40V Liquid Crystal Display Row Driver
  • HV66 - 32-Channel LCD Driver
  • HV6810 - 10-Channel Serial-Input Latched Display Driver

Full PDF Text Transcription

Click to expand full text
HV62208 32-Channel 256 Gray-Shade High Voltage Driver Ordering Information Package Option Device HV62208 64-Lead 3-Sided Plastic Gullwing HV62208PG Die HV62208X Features ❏ ❏ ❏ ❏ ❏ ❏ ❏ ❏ ❏ ❏ ❏ HVCMOS® technology 5V CMOS inputs Up to 80V output voltage PWM gray shade conversion Capable of 256 levels of gray shading Balanced shift clock complies with RS-422 8MHz shift and count clock frequency 16MHz data throughput rate 8 bit data bus 32 outputs per device BLANK function General Description Not recommended for new designs. Please use HV632 instead. The HV622 is a 32-channel gray-shade column driver IC designed for driving electrofluorescent displays. Using Supertex’s unique HVCMOS® technology, it is capable of 256 levels of gray shading by PWM conversion.
