CW01DB1 Datasheet - Supertex

CW01DB1 Continuous Wave Transmitter

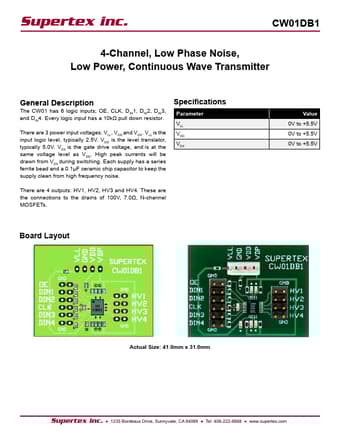

Specifications Parameter VLL VDD VDX CW01DB1 The CW01 has 6 logic inputs; OE, CLK, DIN1, DIN2, DIN3, and DIN4. Every logic input has a 10kΩ pull down resistor. There are 3 power input voltages: VLL, VDD and VDX. VLL is the input logic level, typically 2.5V. VDD is the level translator, typically 5.

CW01DB1_Supertex.pdf

Preview of CW01DB1 PDF
CW01DB1 Datasheet Preview Page 2

Datasheet Details

Part number:

CW01DB1

Manufacturer:

Supertex

File Size:

415.71 KB

Description:

Continuous wave transmitter.
