DN3525 Datasheet - Supertex

DN3525 - N-Channel Depletion-Mode Vertical DMOS FETs

The Supertex DN3525 is a low threshold depletion-mode (normally-on) transistor utilizing an advanced vertical DMOS structure and Supertex’s well-proven silicon-gate manufacturing process.

This combination produces a device with the power handling capabilities of bipolar transistors and with the high

DN3525 Features

* High input impedance

* Low input capacitance

* Fast switching speeds

* Low on-resistance

* Free from secondary breakdown

* Low input and output leakage Applications

* Normally-on switches

* Solid state relays

* Conver

DN3525_Supertex.pdf

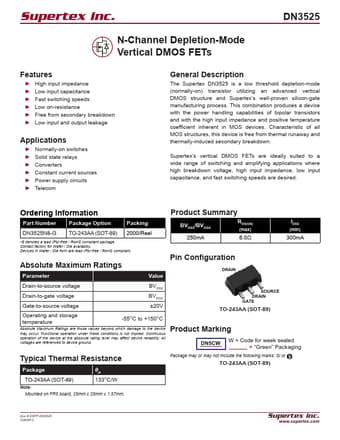

Preview of DN3525 PDF
DN3525 Datasheet Preview Page 2 DN3525 Datasheet Preview Page 3

Datasheet Details

Part number:

DN3525

Manufacturer:

Supertex

File Size:

369.20 KB

Description:

N-channel depletion-mode vertical dmos fets.
