ET13 Programmable Encoder

ET13 Description

~ "-11 !!!iupertexinc.ET13 r Programmable Encoder Ordering Information Device ET13 ET13 Package 20 *Pin Plastic DIP 20-Pin SO Surface Mount .

ET13 Features

* o High Density Transmit only ED Device o 13 Address Bits (8192 Addresses) o Manchester Phase Encoding o Transmitter Compatible with ED15 Series o Schmitt Trigger Input for excellent noise reduction o Built-in Oscillator using non-critical RC components o Zener Diode to regulate the power supply o Lo

ET13 Applications

* o Smoke and Fire Alarm Systems o Pocket Pagers o Digital Locks o Theft Alarm Systems o Security Systems o Digital Paging Systems o Special Identification Code Systems o Remote Sensor Data Acquisition Systems o Single Channel Digital Transmission of Information Absolute Maximum Ratings Supply Volta

📥 Download Datasheet

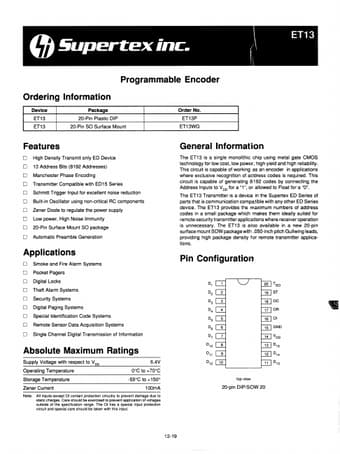

Preview of ET13 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ET13
Manufacturer
Supertex
File Size
285.81 KB
Datasheet
ET13-Supertex.pdf
Description
Programmable Encoder
