HV632

256 Gray-Shade High Voltage Driver

Supertex

HV632 Features

* HVCMOS® technology

* 5.0V CMOS inputs

* Output voltage up to +80V

* PWM gray shade conversion

* Capable of 256 levels of gray shading

* 10MHz shift and count clock frequency

* 20MHz data throughput rate

* 8 bit data bus

* 32

HV632 General Description

The HV632 is a 32-channel gray-shade column driver IC designed for driving electrofluorescent displays. Using Supertex’s unique HVCMOS® technology, it is capable of 256 levels of gray shading by PWM conversion. Input data, in groups of eight, is latched into a set of data latches on both edges of th.

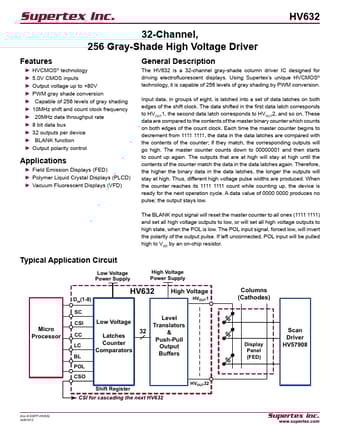

HV632 Datasheet (408.75 KB)

HV632 Datasheet Preview — Preview of HV632 PDF

Datasheet Details

Part number:

HV632

Manufacturer:

Supertex

File Size:

408.75 KB

Description:

256 gray-shade high voltage driver.
